Installing Battery Sensor

  1. Connect ground strap to the ground point and secure with the fastening nut -2-  .

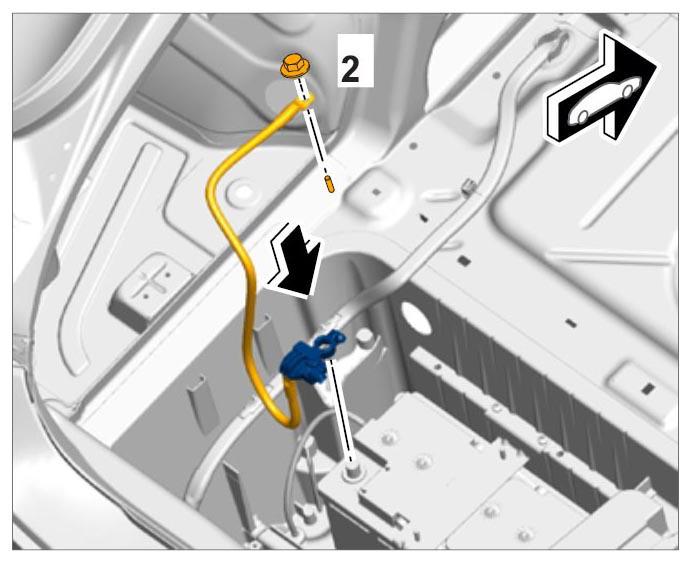

    Fig 1: Fitting Ground Strap
    G09806175Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit and secure battery sensor -1-  with terminal clamp on the battery.

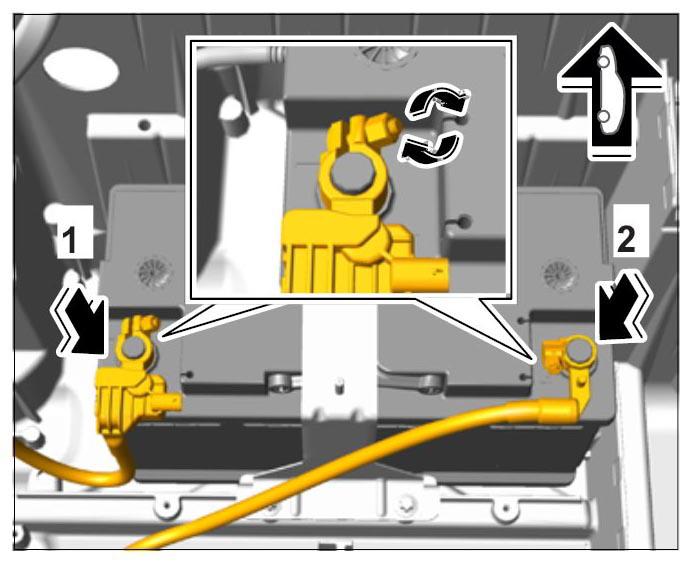

    Fig 2: Attaching Terminal Clamps
    G09806176Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Connect electric plug connection for battery sensor.
