Removing Front Side Member

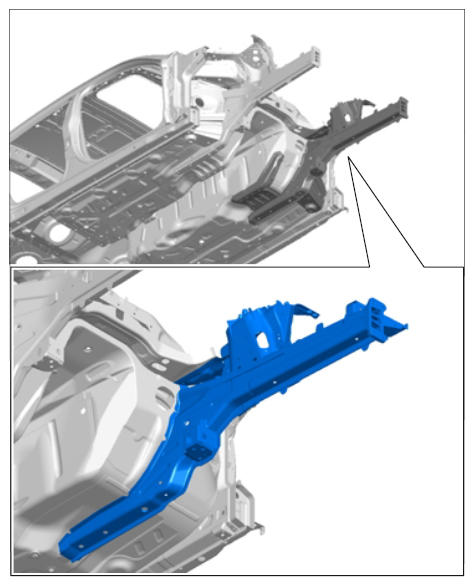

Fig 1: Front Side Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Only drill out rivets in the top component layer as far as required so that the component can be removed  .

1. Drill out punch rivets on the spring strut mount using twist drill Nr.201  .

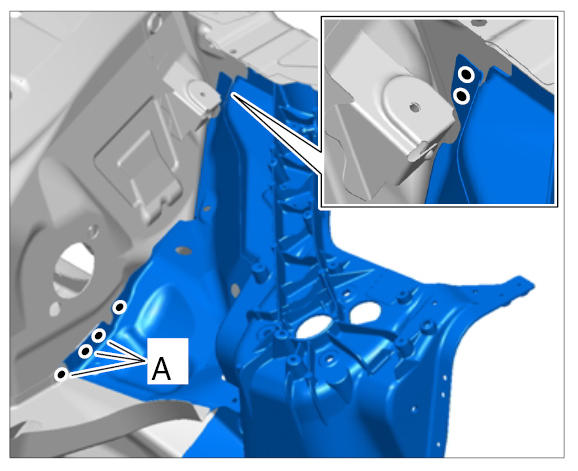

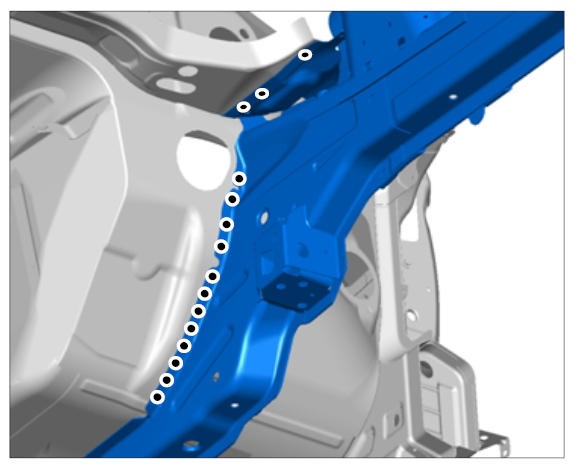

   Fig 2: Identifying Rivets Punching Areas Of Front Side Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Mill off spotwelds A  through two plate thicknesses.

2. Mill off spotwelds using a spherical cutter  .

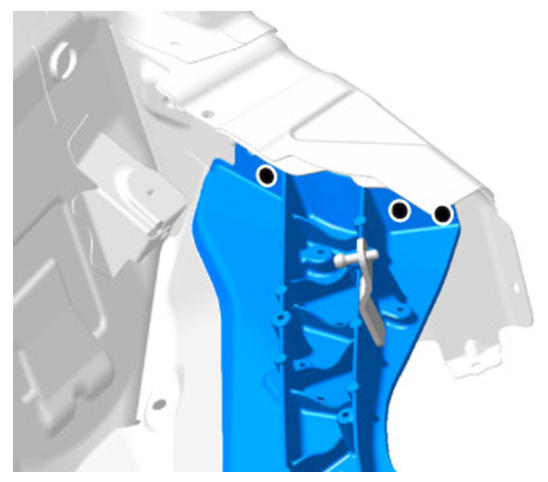

   Fig 3: Identifying Spotwelds On Front Side Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Drill out spotwelds using spotweld drill  .

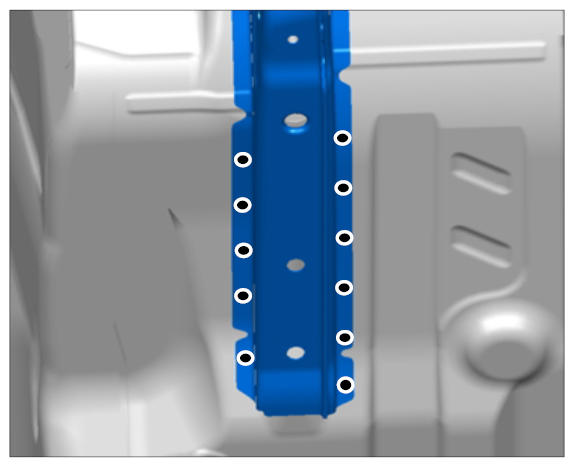

   Fig 4: Identifying Spotwelds On Front Side Member (1 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

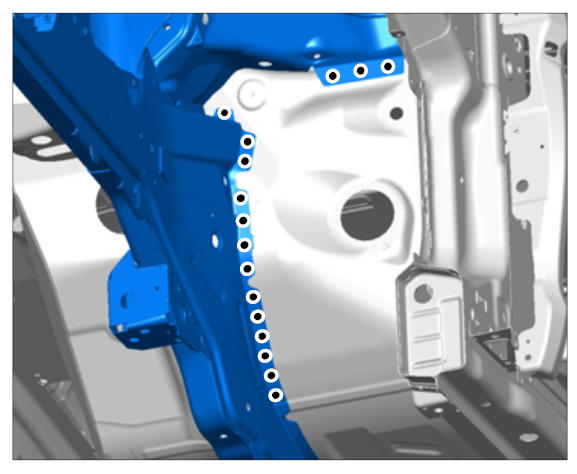

   Fig 5: Identifying Spotwelds On Front Side Member (2 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 6: Identifying Spotwelds On Front Side Member (3 Of 3)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Heat up connection areas using a hot-air gun.

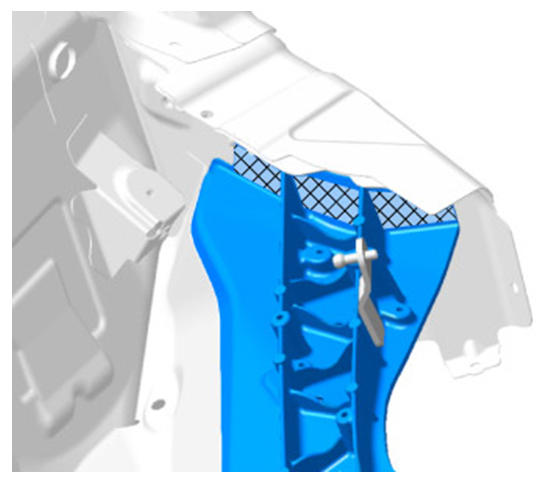

   Fig 7: Identifying Connection Areas Of Front Side Member (1 Of 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

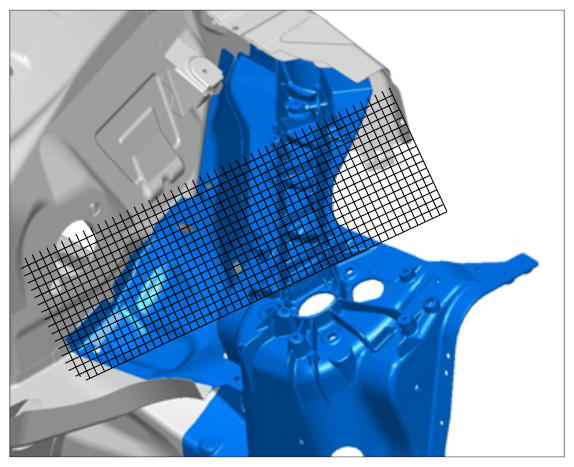

   Fig 8: Identifying Connection Areas Of Front Side Member (2 Of 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

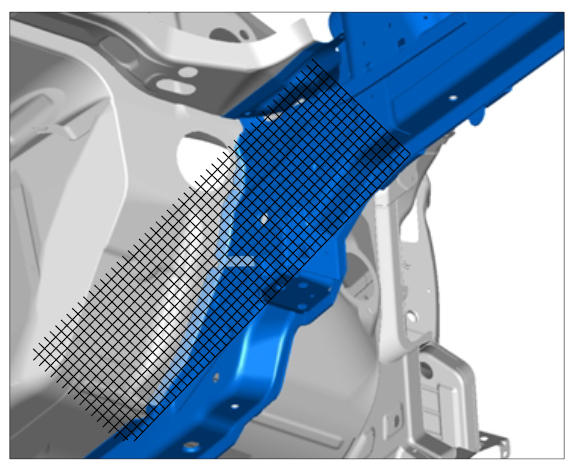

   Fig 9: Identifying Connection Areas Of Front Side Member (3 Of 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

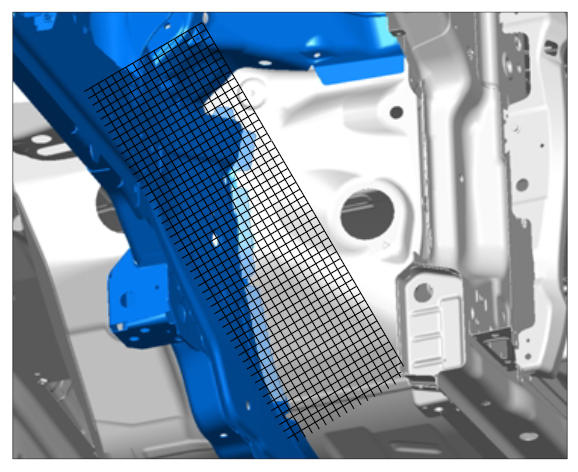

   Fig 10: Identifying Connection Areas Of Front Side Member (4 Of 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove front side member.
