Installing Wire Harness For Removable Trailer Hitch

  1. Position wire harness.
  2. Guide the wire harness through the opening in the body and insert the grommet -1-  into the opening.
  3. Secure the wiring harness at the fixing clips -2-  with tie-wraps.
  4. Guide plug socket through recess in trailer hitch.
  5. Insert plug socket -1-  in the socket housing until the plug socket engages securely.

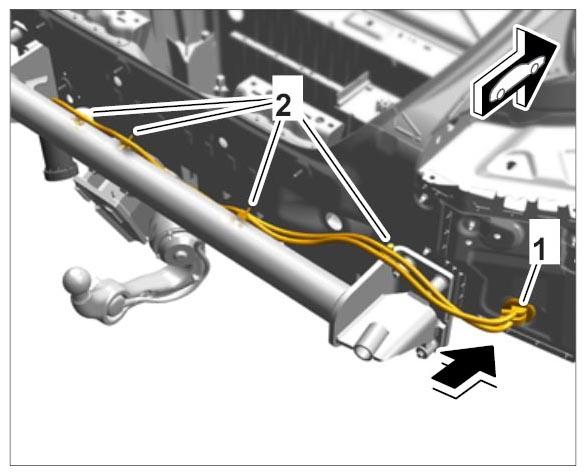

    Fig 1: Fitting Grommet And Tie-Wraps
    G09814167Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Fit rubber seal -2-  and fit lower part of socket housing -3-  . Make sure that the seal makes good contact and that the lower part of the housing engages securely.

    Information

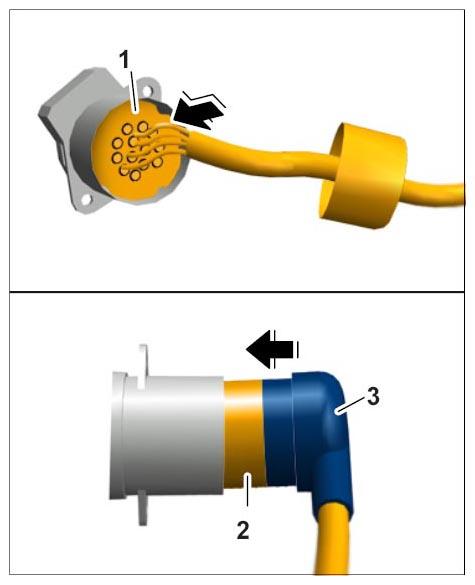

    Fig 2: Assembling Plug Socket
    G09814168Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Always replace the fastening screws and nuts after customer service and reworking. The micro-self-locking screws must not be treated, greased or loosened and then screwed on again.

  7. Secure the plug socket -2-  to the trailer hitch with two fastening screws -1-  . → Tightening torque: 3.5 Nm (2.6 ftlb)

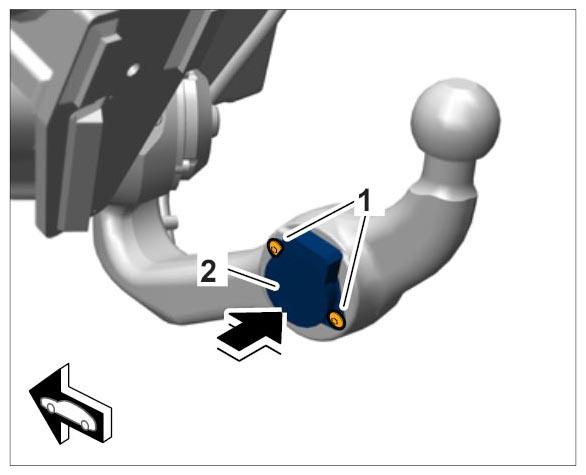

    Fig 3: Installing Plug Socket
    G09814169Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Secure the wire harness to the fixing clips with tie-wraps. Make sure that the wire harness follows the contours of the trailer hitch.

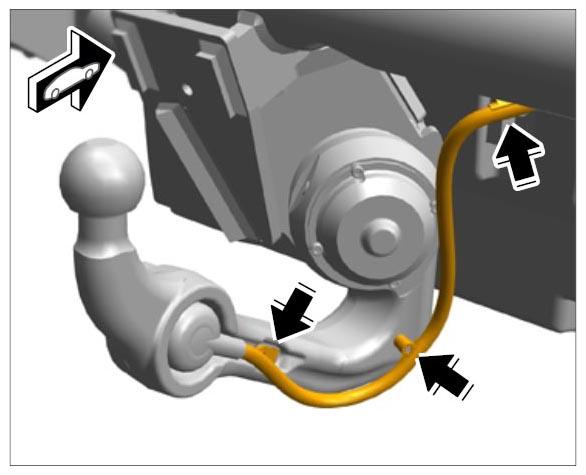

    Fig 4: Securing Tie-Wraps To Trailer Hitch
    G09814170Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Plug in electric plug connections -1-  and -2-  on the trailer hitch motor until the connectors engage securely.

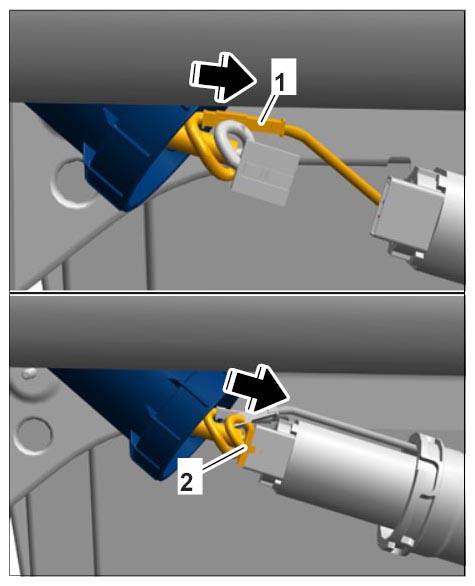

    Fig 5: Installing Motor Connectors
    G09814171Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Fit upper part of motor cover -1-  onto the trailer hitch motor -A-  and turn to lock it -B-  until the upper part engages securely.

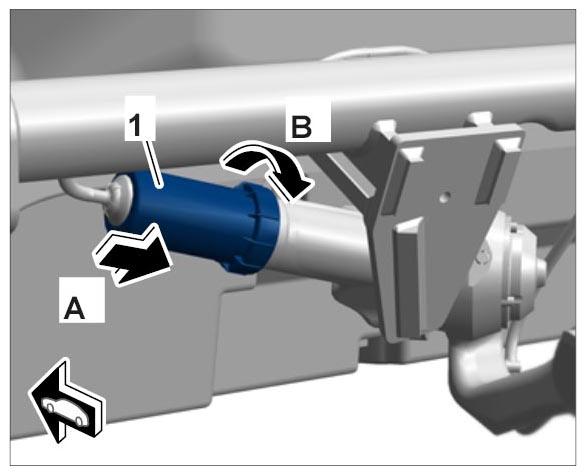

    Fig 6: Securing Top Half Of Motor Cover
    G09814172Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Secure the ground cable -2-  with the fastening nut -1-  . → Tightening torque: 9.7 Nm (7.2 ftlb)
  12. Plug in electric plug connection -3-  on the trailer hitch control unit until the connector engages securely.

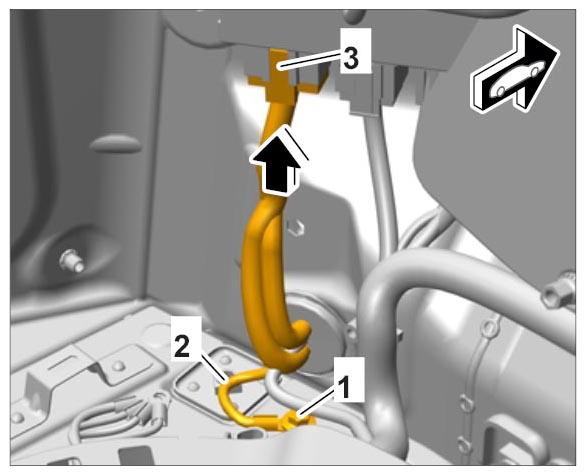

    13. Fig 7: Securing Connector And Ground Cable
    G09814173Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  13. Attach guard

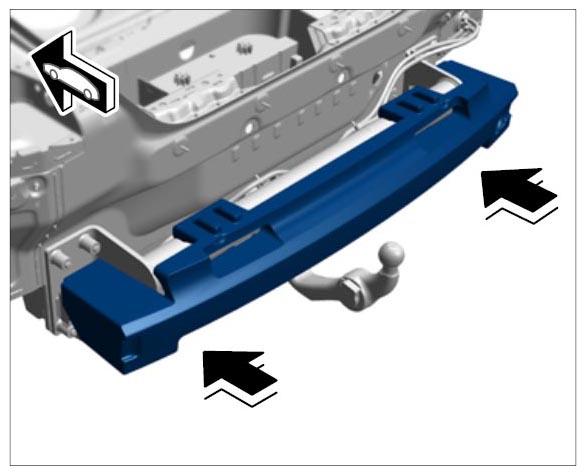

    Fig 8: Fitting Guard
    G09814174Courtesy of PORSCHE CARS NORTH AMERICA, INC.
