Dimensions For Distance Measuring Sensor Adjustment

Information

Check that there is sufficient floor space between the vehicle and the adjustment device - the gap between the adjustment device and vehicle must be approx. 120 cm.

The vehicle can be reversed onto the axle alignment platform if there is not enough floor space in front of the measuring platform.

The vehicle must be positioned so that the front and rear axles are centered on turnplates/sliding plates.

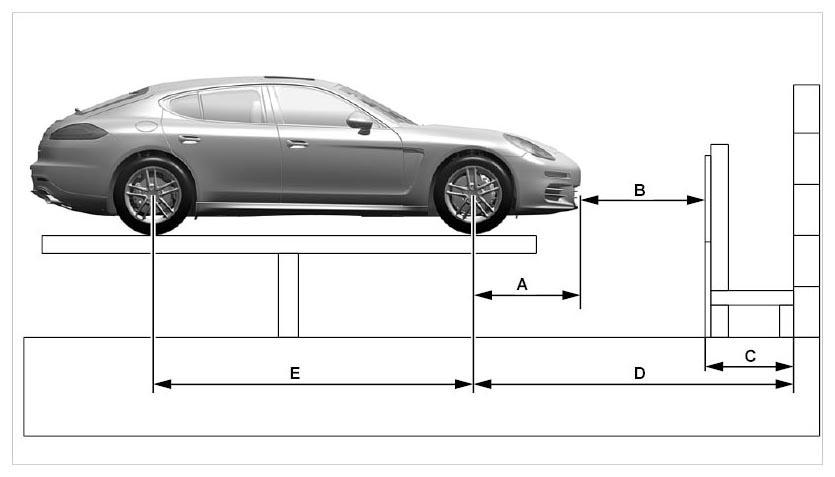

Fig 1: Identifying Dimensions For Distance Measuring Sensor Adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Vehicle overhang at the front of the Panamera: 98 cm  .
2. Distance between adjustment tool and vehicle: 120 +/- 20 cm  .
3. Width of adjustment tool: 62 cm  .
4. Recommended minimum distance from center of front wheel (or center of turnplate) to wall in front of vehicle:280 cm  .
5. Wheelbase or distance from turnplate to center of rotary sliding plate: 292 cm  .
