Subsequent Work For Battery

  1. Install control unit for voltage transformer for Start/Stop, if used.

    Information

    The AGM (A  bsorbent G  lass M  at) battery is a maintenance-free  , sealed  battery.

    • This battery must not be opened. If the battery is opened, it must be replaced.
    • There is a serial number -A- and a part number -B- on the top right-hand side of the battery.

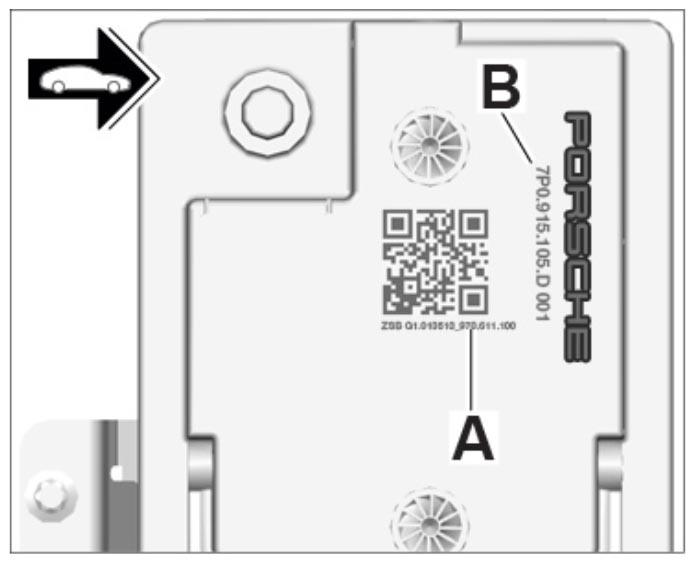

      Fig 1: Identifying Serial Number And Part Number On Battery
      G09806194Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    • After replacing the battery, the serial number and part number as well as the battery size and manufacturer must be entered using the PIWIS Tester under: Gateway/Maintenance/repairs/Change battery  .
    • The battery size and battery manufacturer must also be entered when changing the battery.
  2. If a new battery was installed, the new battery must be documented in the gateway control unit using PIWIS Tester II 9818  .
  3. Carry out work instruction after disconnecting the battery. → 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
  4. Fit tool kit tray.
  5. Close the luggage compartment floor.
