Removing DC/DC Converter

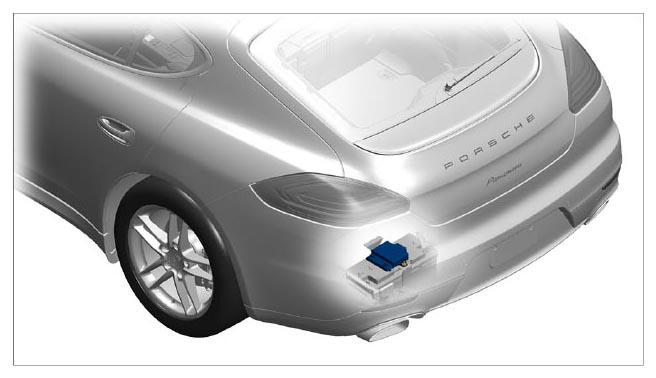

Fig 1: Identifying Installation Position Of DC/DC Converter
G09806162Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release the latch on the connector -a-  and remove the connector from the DC/DC converter.

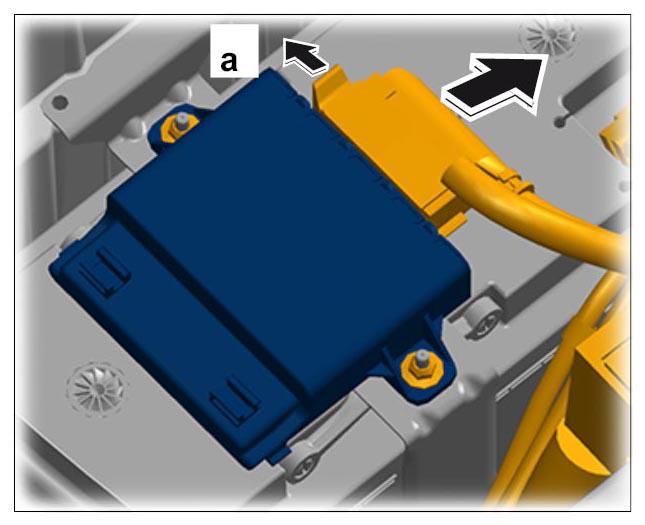

    Fig 2: Removing Connector From DC/DC Converter
    G09806163Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew and remove the two fastening nuts -2-  and remove the DC/DC converter -1-  .

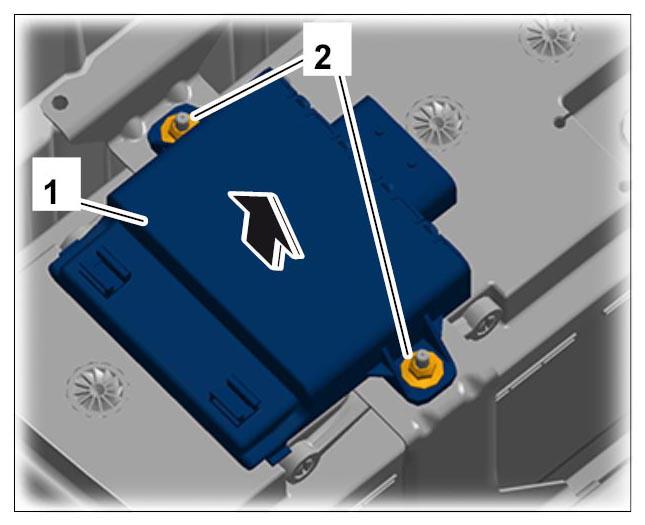

    Fig 3: Removing Fastening Screws
    G09806164Courtesy of PORSCHE CARS NORTH AMERICA, INC.
