Removing Dome Strut

Remove side foam pads at both sides of the wing.

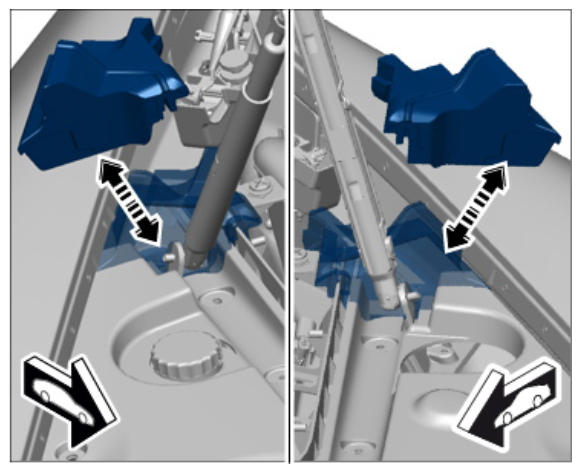

Fig 1: Removing Side Foam Pads
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove right plenum panel wall.
1. 2.1. Disconnect cable plugs on the two sensors (prevents damage to the plugs during subsequent work). -1 and 2- Always disconnect the cable plug -1- from the spring strut by pulling it straight up (risk of breakage).

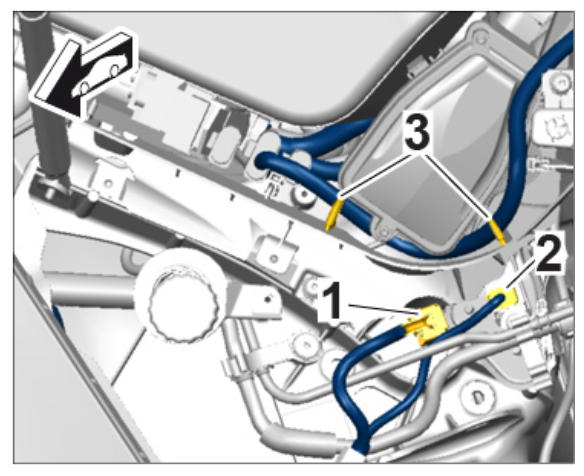

  Fig 2: Removing Right Plenum Panel Wall
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Disconnect engine wire harness at the plenum panel wall and expose it -3- .
3. 2.3. Remove fastening screws -1- on the right plenum panel wall.

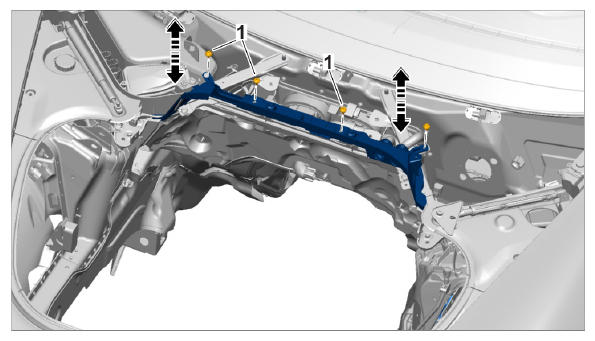

  Fig 3: Removing Right Plenum Panel Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Remove plenum panel wall.
Remove left plenum panel wall.
1. 3.1. Disconnect cable plugs on the two sensors -1 and 2- (prevents damage to the plugs during subsequent work). Always disconnect the cable plug from the spring strut -1- by pulling it straight up (risk of breakage).

  Fig 4: Identifying Cable Plugs On Sensor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Disconnect engine wire harness at the plenum panel wall and expose it -3- .
3. 3.3. Remove fastening screws -1- on the left plenum panel wall.

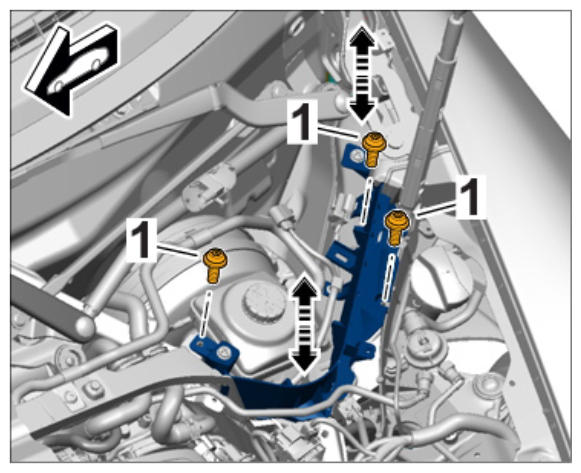

  Fig 5: Removing Left Plenum Panel Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 3.4. Remove plenum panel wall.

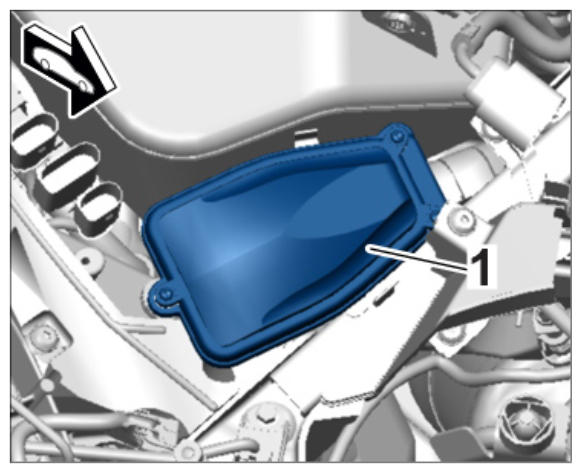

Detach relay box from the strut. To do this, press the plastic hook -1- and set the relay box aside.

Fig 6: Identifying Relay Box On Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

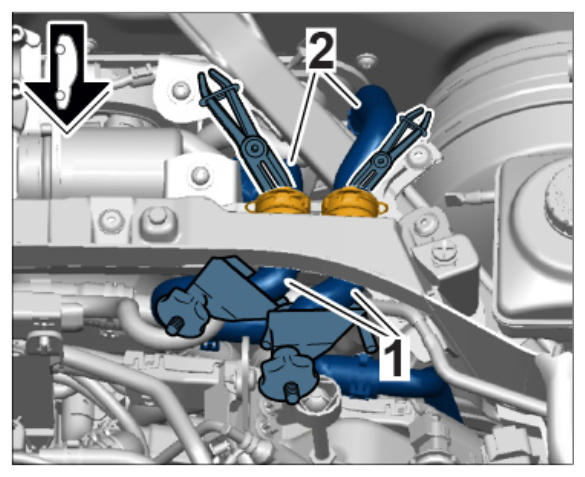

Clamp heating and coolant hoses -1- on both sides of the center plenum panel wall at the top using suitable hose clamps -2- .

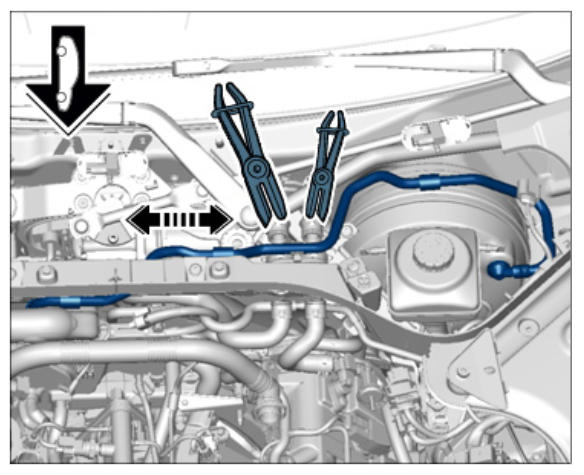

Fig 7: Clamping Off Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

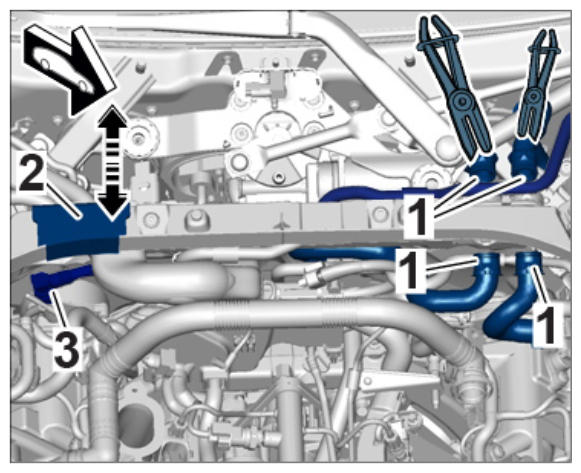

1. 5.1. Disconnect hoses by releasing the locking clips and pull them off. Collect/soak up residual coolant.

  Fig 8: Disconnected Hoses
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Move locking clips back into installation position again immediately after removing the hoses.
Pull engine wire harness out of the center plenum panel wall.

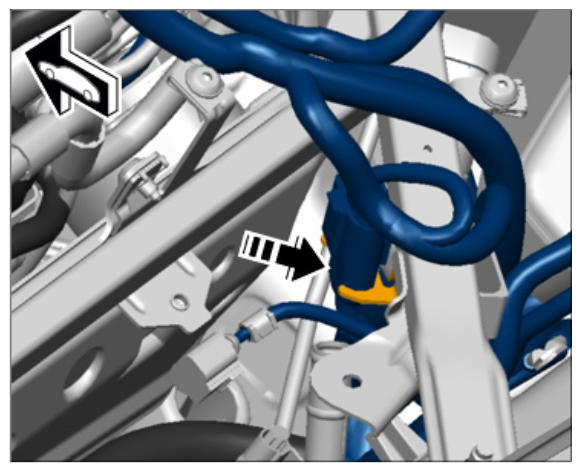

Fig 9: Pulling Engine Wire Harness/Vacuum Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull vacuum line off the vacuum pump.
Remove center plenum panel wall at the top.
1. 8.1. Remove fastening screws -1- .

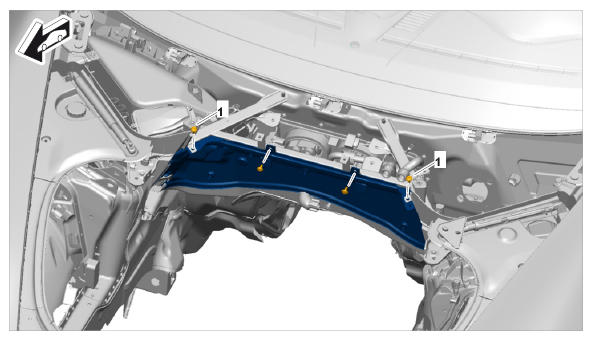

  Fig 10: Identifying Centre Plenum Panel At Top
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 8.2. Lift up center plenum panel wall at the top and pull vacuum line through the bore in the grommet.

  Fig 11: Pulling Vacuum Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove strut (A-strut).

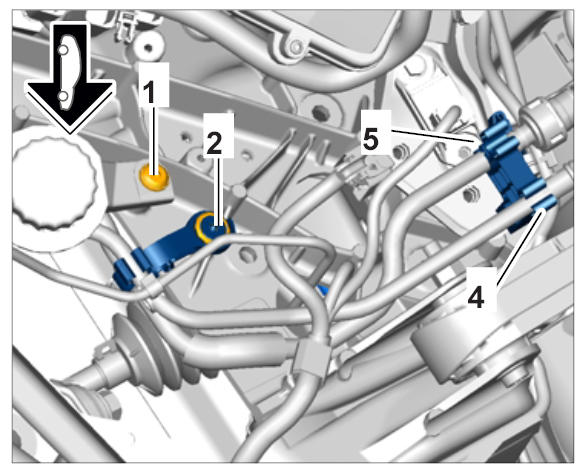

1. 9.1. Detach lines (vacuum, tank vent, fuel lines) and remove plastic clip -4 and 5- . Release plastic clip by inserting a screwdriver through the side hole in the strut and pull it off.

  Fig 12: Identifying Cable Holder And Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 9.2. Unscrew and remove fastening screws -1- .

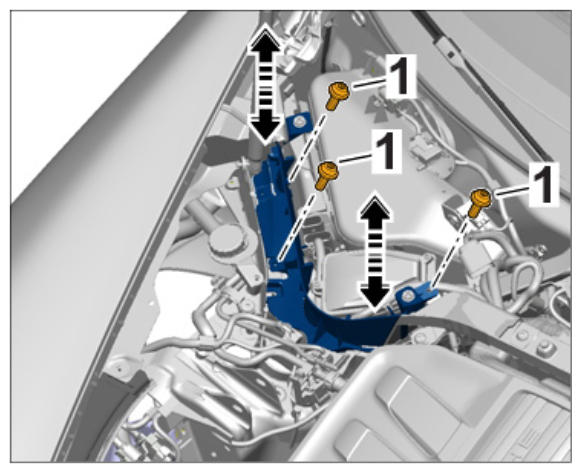

  Fig 13: Identifying Mounting For Plenum Panel Strut
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Remove fastening screws and nuts on the strut (A-strut) -1 and 2- .

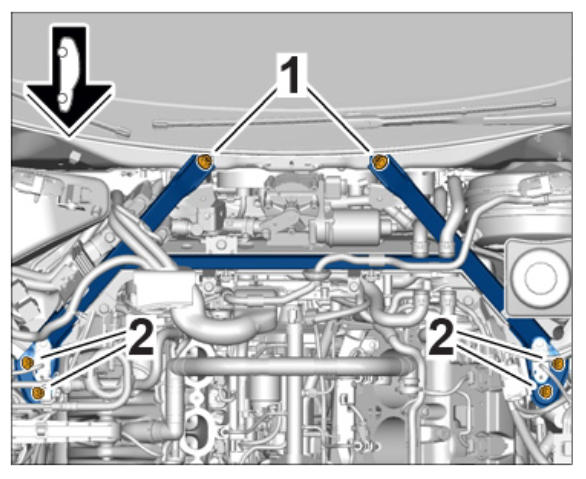

  Fig 14: Identifying Strut Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 9.3. Disconnect engine wire harness under the strut and press holder out carefully.

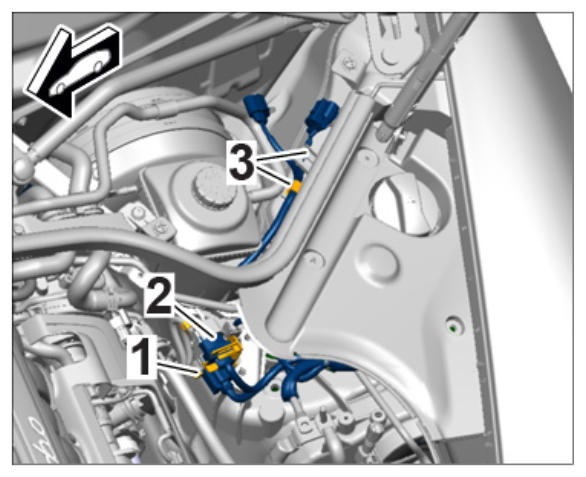

  Fig 15: Identifying Wiring Harness For Strut
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 9.4. Release two large cable plugs on the strut. To do this, press the two plugs out of the strut from behind.
5. 9.5. Get another mechanic to help you guide the strut out sideways under the brake fluid reservoir.

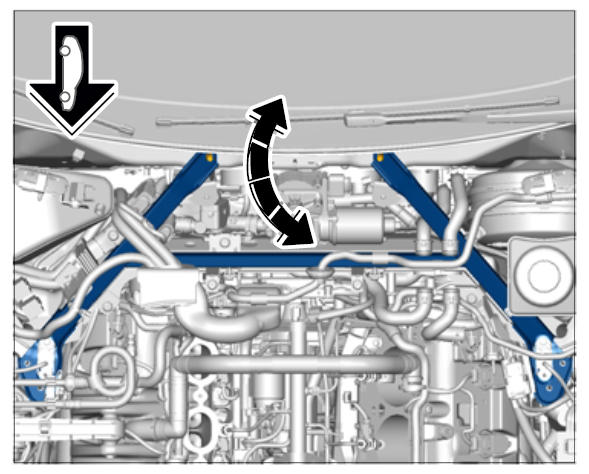

  Fig 16: Removing Strut
