Valve Cover

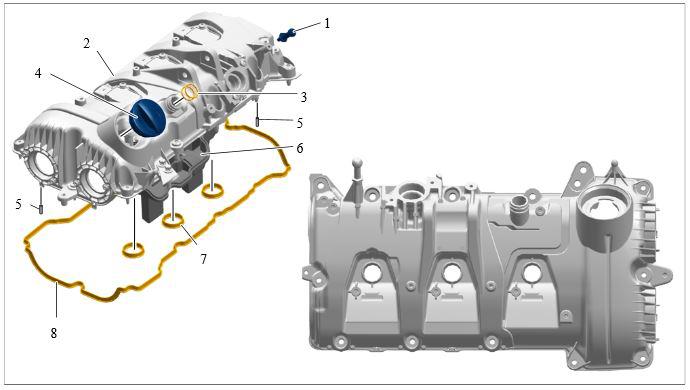

Fig 1: Exploded View Of Valve Cover (Cylinders 1-3)
G09804715Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Engine cover mounting
  2. Valve cover
  3. O-rings

    top  - O-ring 22.5 x 2.5 FPM

    bottom  - O-ring 22.5 x 2.5 HNBR

  4. Oil cap
  5. Centering pin
  6. Oil mist separator
  7. Cylinder-head cover gasket, inner
  8. Cylinder-head cover gasket
