Positive Crankcase Ventilation

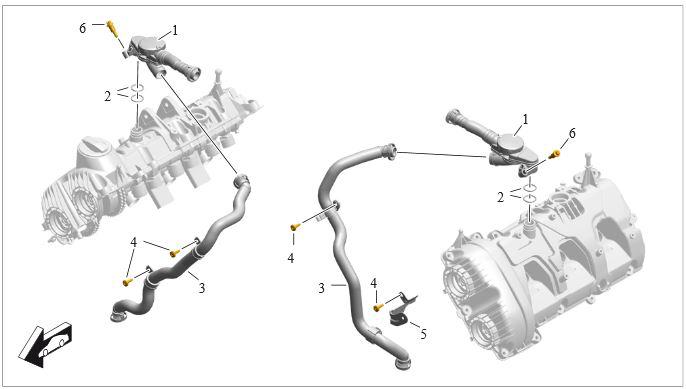

Fig 1: Positive Crankcase Ventilation Diagram
G09804714Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Positive crankcase ventilation valve
  2. O-rings
  3. Positive crankcase ventilation line
  4. Aluminum screw,  M6 x 16/replace  → Initial tightening: 4 Nm (3 ftlb.)  → Final tightening: +90°
  5. Holder
  6. Screw, M6 x 30 → Tightening torque: 10 Nm (7.5 ftlb.)
