High-Pressure Pump With High-Pressure Lines

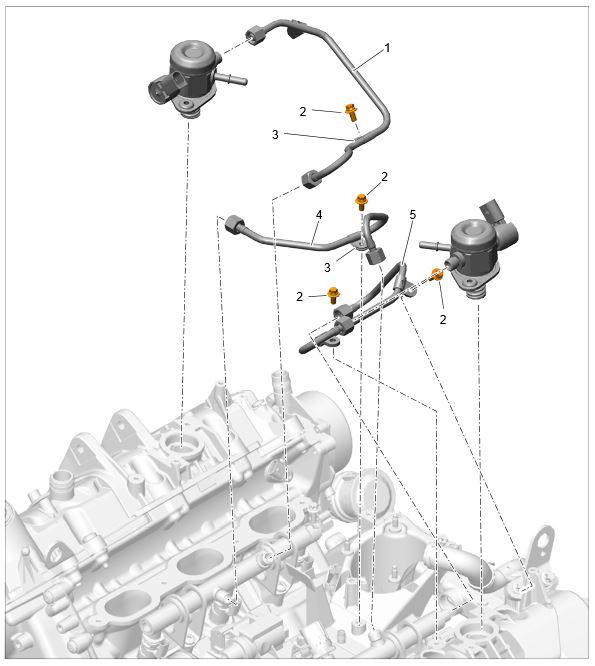

Fig 1: Exploded View Of High-Pressure Pump With Lines

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. High-pressure line, cylinders 1-3
2. Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ftlb.)
3. Clamp
4. High-pressure connecting line
5. High-pressure line, cylinders 4-6

Tightening specifications for fuel lines to high-pressure pump and fuel gallery:

1. Fit union nuts hand-tight.
2. Screw in and align holder/clamp.
3. Tighten union nuts to → Initial tightening: 20 Nm (15 ftlb.)  .
4. Tighten holder/clamp to → Tightening torque: 10 Nm (7.5 ftlb.)  .
5. Tighten union nuts to → Final tightening: +35 Nm (+26 ftlb.)  until secure.
