Removing Cylinder Head Cover For Cylinders 4 - 6

Information

Replace sealing rings, seals and O-rings.

Information

• Fuel lines must not be bent.
• Bent fuel lines must be replaced.

Information

For better access in the engine compartment, use support 9866  .

• Fit support -1- instead of torque support.
• The engine can be moved by turning the hexagon (a/f 17) to the left or right -arrows-  .

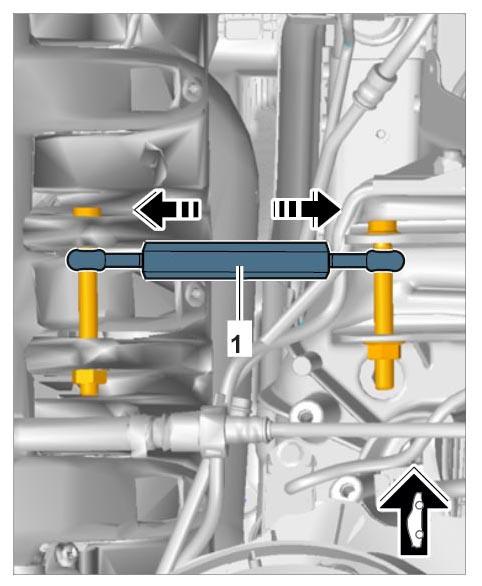

  Fig 1: Supporting Special Tool 9866

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Disconnect coolant line.
   1. 1.1. Unscrew fastening screw -1-  .

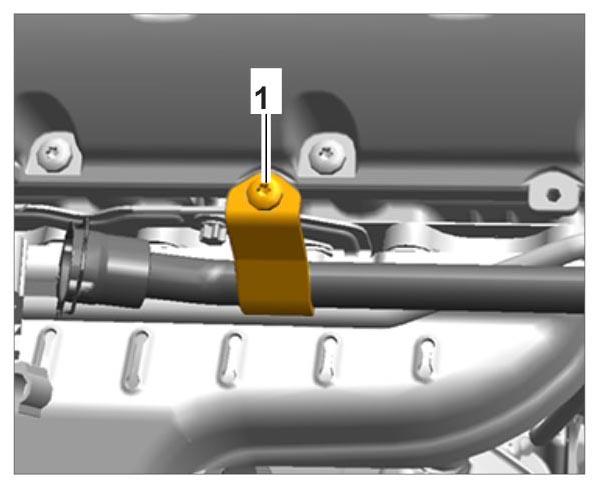

      Fig 2: Identifying Coolant Pipe Holder On Cylinder Head Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew fastening screws -1-  and -2-  .
3. Swivel B+ wiring harness -3-  aside.

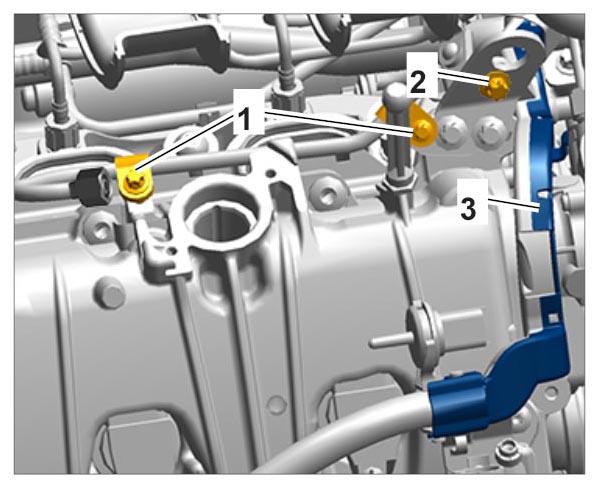

   Fig 3: Identifying High-Pressure Line And Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Loosen union nut for high-pressure line -5-  on fuel collection pipe.

   Information

   • Fuel lines must not be bent.
   • Bent fuel lines must be replaced.
5. Swivel high-pressure line -5-  aside.
   Fig 4: Exploded View Of High-Pressure Pump With Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Unscrew fastening screws -1 to 14-  .

   Replace aluminum screws.

   Fig 5: Valve Cover For Cylinders 4-6 Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Remove cylinder head cover.
   1. 7.1. Remove tappet -6-  from the cylinder head cover.
      Fig 6: Exploded View Of Tappet For High-Pressure Pump

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
