Removing Cylinder Head Cover For Cylinders 1 - 3

Information

Replace sealing rings, seals and O-rings.

Information

Attach all tie-wraps at the same places during installation.

Information

For better access in the engine compartment, use support 9866  .

• Fit support -1- instead of torque support.
• The engine can be moved by turning the hexagon (a/f 17) to the left or right -arrows-  .

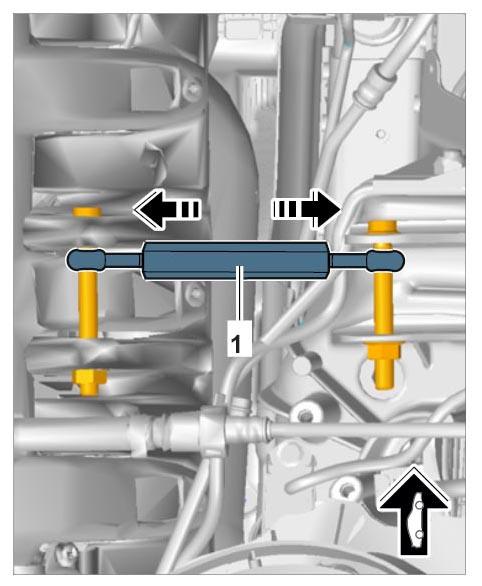

  Fig 1: Supporting Special Tool 9866

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Loosen fastening screw -1-  .
   Fig 2: Identifying High-Pressure Line Fastening Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Loosen union nut for high-pressure line -1-  on fuel collection pipe.

   Information

   • Fuel lines must not be bent.
   • Bent fuel lines must be replaced.
3. Swivel high-pressure line -1-  aside.
   Fig 3: Exploded View Of High-Pressure Pump With Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Disconnect tank vent line -2-  and vacuum line -3-  .
5. Unclip wiring harness -4-  .

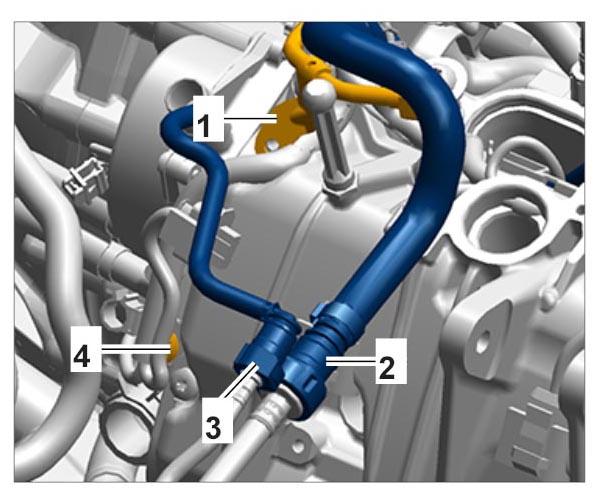

   Fig 4: Identifying Vacuum Line/Tank Vent Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Unscrew fastening screws -1 to 14 -  .

   Replace aluminum screws.

   Fig 5: Valve Cover For Cylinders 1-3 Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Remove cylinder head cover.
   1. 7.1. Remove tappet -6-  from the cylinder head cover.
      Fig 6: Identifying Tappet For High-Pressure Pump

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
