Installing Cylinder Head Cover For Cylinders 4 - 6

Information

Replace sealing rings, seals and O-rings.

Information

Attach all tie-wraps at the same places during installation.

Information

• Fuel lines must not be bent.
• Bent fuel lines must be replaced.

Information

• Replace aluminum screws.
• Always observe specified tightening sequence.

Information

For better access in the engine compartment, use support 9866  .

• Fit support -1- instead of torque support.
• The engine can be moved by turning the hexagon (a/f 17) to the left or right -arrows-  .

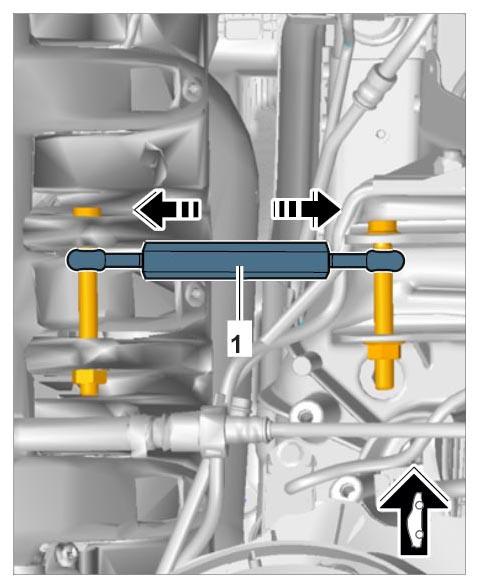

  Fig 1: Supporting Special Tool 9866

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Install cylinder head cover.
   1. 1.1. Insert tappet -6-  for high-pressure pump into the cylinder head cover.
      Fig 2: Identifying Tappet For High-Pressure Pump

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Replace aluminum screws.
   • Always observe specified tightening sequence.
2. Tighten fastening screws -1 to 14-  .
   Fig 3: Valve Cover For Cylinders 4-6 Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Fuel lines must not be bent.
   • Bent fuel lines must be replaced.
3. Position high-pressure line -5-  .
4. Tighten union nut for high-pressure line -5-  on fuel collection pipe.

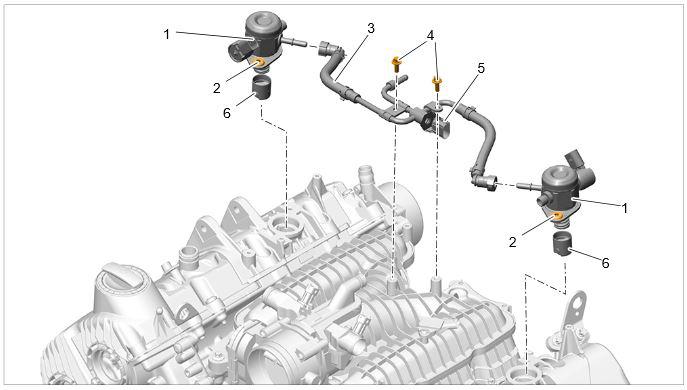

   Fig 4: Exploded View Of High-Pressure Pump With High-Pressure Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Position B+ wiring harness -3-  .
6. Tighten fastening screws -1-  and -2-  . Tightening torque 10 Nm (7.5 ftlb.)

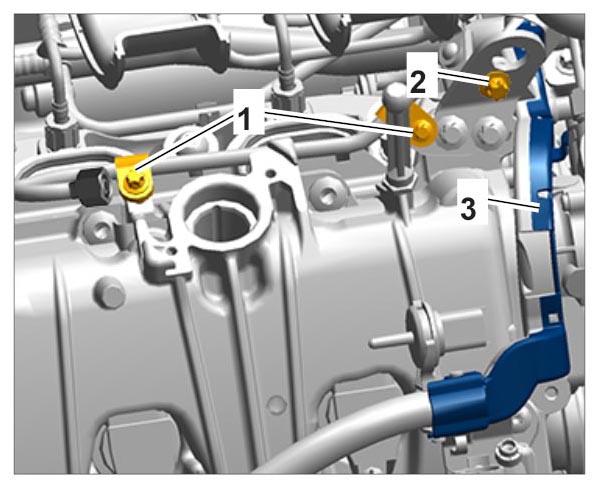

   Fig 5: Identifying High-Pressure Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Secure coolant line.
   1. 7.1. Tighten fastening screw -1-  .

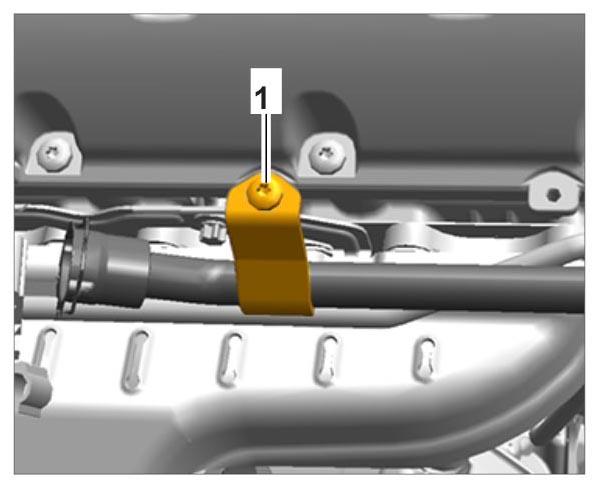

      Fig 6: Identifying Coolant Pipe Holder On Cylinder Head Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
