Installing Cylinder Head Cover For Cylinders 1 - 3

Information

Replace sealing rings, seals and O-rings.

Information

Attach all tie-wraps at the same places during installation.

Information

For better access in the engine compartment, use support 9866  .

• Fit support -1- instead of torque support.
• The engine can be moved by turning the hexagon (a/f 17) to the left or right -arrows-  .

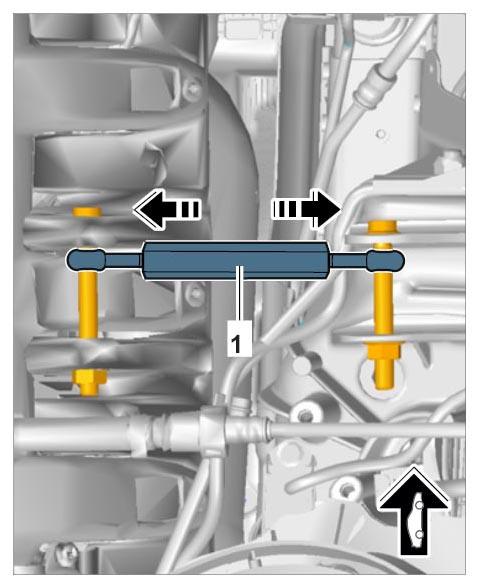

  Fig 1: Supporting Special Tool 9866

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Install cylinder head cover.
   1. 1.1. Insert tappet -6-  for high-pressure pump into the cylinder head cover.
      Fig 2: Identifying Tappet For High-Pressure Pump

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Replace aluminum screws.
   • Always observe specified tightening sequence.
2. Tighten fastening screws -1 to 14 -  .
   Fig 3: Valve Cover For Cylinders 1-3 Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Clip in wiring harness -4-  .
4. Clip in tank vent line -2-  and vacuum line -3-  .

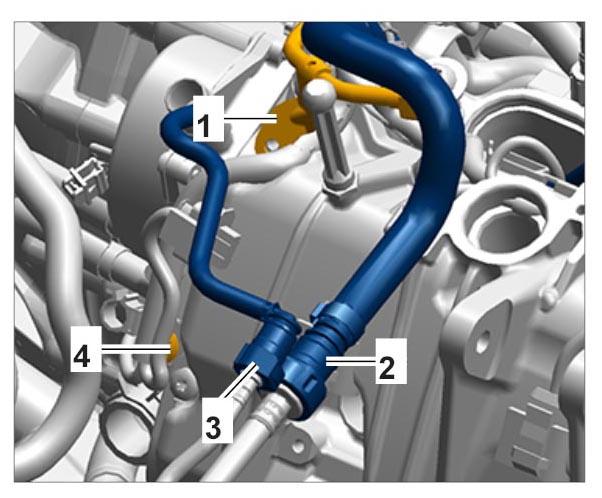

   Fig 4: Identifying Vacuum Line/Tank Vent Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Fuel lines must not be bent.
   • Bent fuel lines must be replaced.
5. Position high-pressure line -1-  .
6. Tighten union nut used to secure high-pressure line -1-  to fuel collection pipe using a suitable torque wrench, adapter Nr.98-1 Pos.2  and open-jawed wrench insert Nr.95 Pos.2  .
   Fig 5: Exploded View Of High-Pressure Pump With Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Tighten fastening screw -1-  .
   Fig 6: Identifying High-Pressure Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
