Special Tool

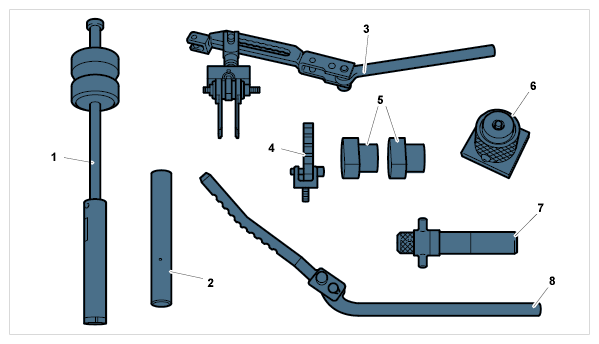

Fig 1: Identifying Special Tools For Valve Assemblies
G09804643Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Puller 3364  => only for removing valve-stem seals.
  2. Assembly driver 9606/1  => only for fitting valve-stem seals.
  3. Universal assembly bar with universal assembly driver Valve key fitting and removal tool Nr.54 Pos.1
  4. Hooking piece (fitting hook) with holder (several possible)
  5. Plastic guide for intake and outlet valve guide bush, 31 mm Nr.54 Pos.1A  and guide bush, 28 mm Nr.54 Pos.1B
  6. Assembly fixture for valve keys
  7. Assembly cartridge for valve keys
  8. Assembly bar (hook) with adjustable lever
