Installing Hydraulic Valve For Valve Lift Switchover

  1. Install hydraulic valve -3-  with new sealing ring in correct position.

    Sealing ring must not slip out of place.

  2. Fit and tighten fastening screws -4-  . Tightening torque 6 Nm (4.5 ftlb.)

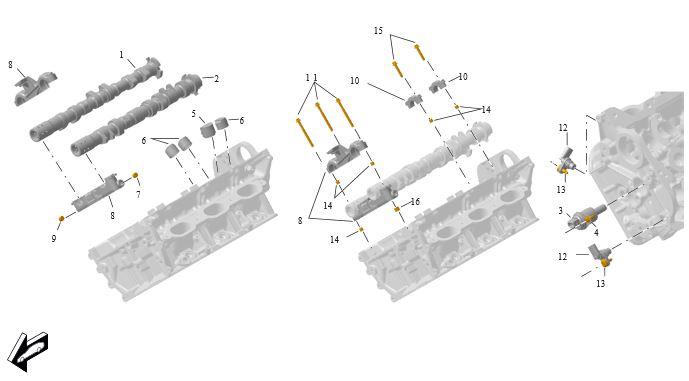

    Fig 1: Exploded View Of Valve Drive, Cylinders 1-3
    G09804509Courtesy of PORSCHE CARS NORTH AMERICA, INC.
