Assembly Overview - Drive Chain For Timing Drive Mechanism

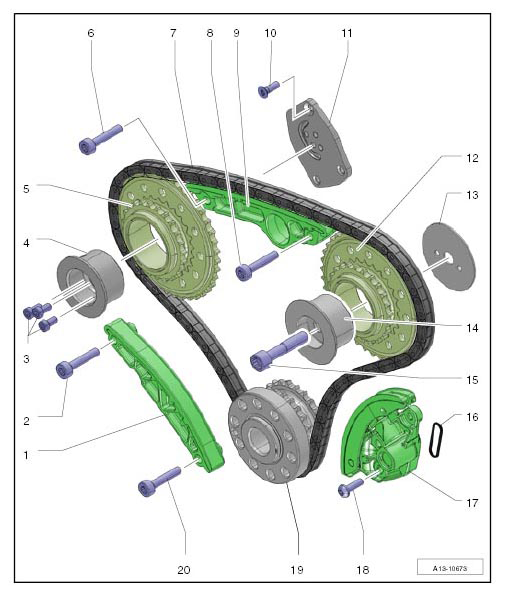

Fig 1: Identifying Drive Chain For Timing Drive Mechanism Assembly
G09804584Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Guide rail
  2. Screw/replace  → Initial tightening: 10 Nm (7.5 ftlb.)  → Final tightening: +90°
  3. Screws/replace  → Initial tightening: 5 Nm (3.5 ftlb.)  → Final tightening: +60 Nm (+44 ftlb.)
  4. Bearing pin, for drive sprocket
  5. Drive sprocket, for left timing chain
  6. Screw/replace  → Initial tightening: 10 Nm (7.5 ftlb.)  → Final tightening: +90°
  7. Drive chain, for timing drive mechanism

    - For re-installation, mark running direction with paint/color marker

  8. Screw/replace  → Initial tightening: 10 Nm (7.5 ftlb.)  → Final tightening: +90°
  9. Guide rail
  10. Screw/replace  → Initial tightening: 8 Nm (6 ftlb.)  → Final tightening: +45°
  11. Bearing plate, for drive sprocket

    - Asymmetrical version

  12. Drive sprocket, for right timing chain
  13. Thrust plate

    - Asymmetrical version

  14. Bearing pin, for drive sprocket

    - Asymmetrical version

  15. Screw/replace  → Initial tightening: 30 Nm (22 ftlb.)  → Final tightening: +90°
  16. Seal/replace
  17. Chain tensioner
  18. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  19. Crankshaft
  20. Screw/replace  → Initial tightening: 10 Nm (7.5 ftlb.)  → Final tightening: +90°
