Installing Solenoid/Hydraulic Valve For Camshaft Controller

Information

Replace sealing rings, seals and O-rings.

1. Position hydraulic valve -6-  .
2. Tighten fastening screws -5-  .

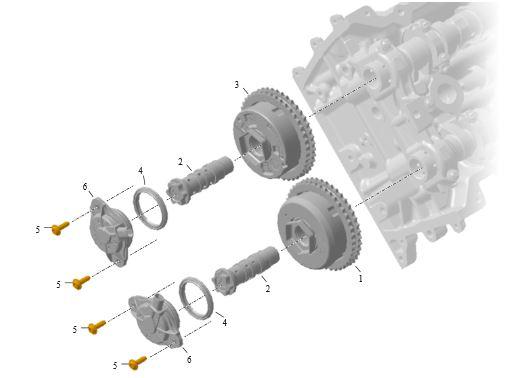

   Fig 1: Identifying Camshaft Controller Assembly

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
