Removing Timing-Case Cover

→ Always reseal the oil pan when removing the timing-case cover.

1. Remove deflection rollers -1, 4-  and belt tensioner -2-  .
   1. 1.1. Lever off the deflection roller covers.
   2. 1.2. Unscrew the belt tensioner screws -3-  and the deflection roller screws.
   3. 1.3. Remove belt tensioner and deflection rollers.

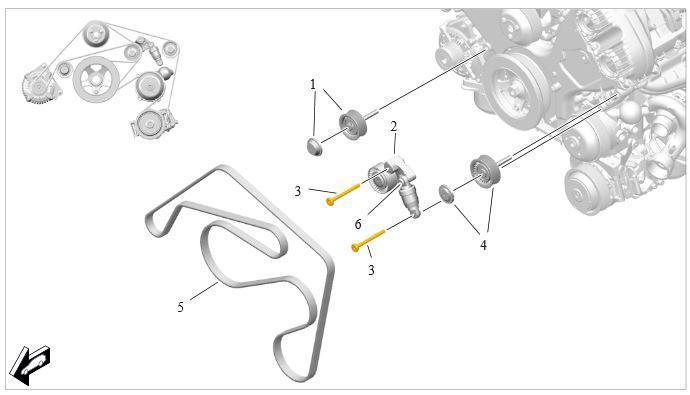

      Fig 1: Exploded View Of Belt Drive

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Disconnect positive crankcase vent lines from the holders.
3. Disconnect cable duct -1-  from the timing-case cover.
   1. 3.1. Remove screw -2-  .

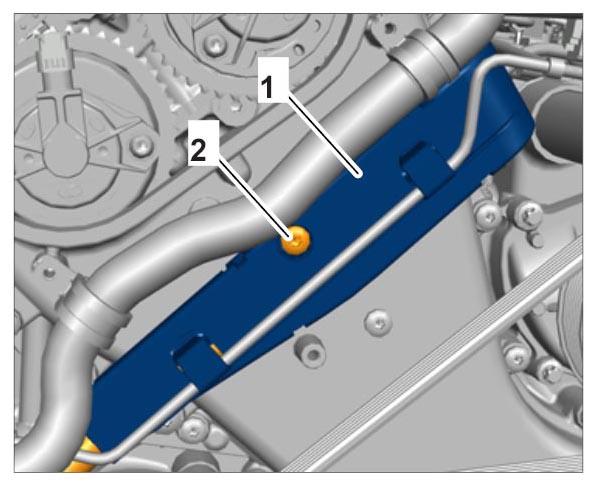

      Fig 2: Identifying Timing-Case Cover Cable Duct With Screw

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove timing-case cover.
   1. 4.1. Loosen screws in the sequence -30 - 1-  .
   2. 4.2. Remove screws -1 - 30-  .
   3. 4.3. Carefully lift off the timing-case cover. Lever off if necessary.
      Fig 3: Timing-Case Cover Tightening Sequence

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
