Preliminary Work

  1. Remove engine from transmission. → 100127 REMOVING ENGINE FROM TRANSMISSION AND MOUNTING ENGINE ON TRANSMISSION
  2. Secure engine on assembly support. → 1001IN SECURING ENGINE ON ASSEMBLY SUPPORT (MOUNTING BRACKET)
  3. Drain engine oil.→ 170117 DRAINING AND FILLING IN ENGINE OIL (CHANGING ENGINE OIL)
  4. Remove drive belt.→ 137819 REMOVING AND INSTALLING DRIVE BELT .
  5. Remove coolant hoses in front of the timing-case cover.

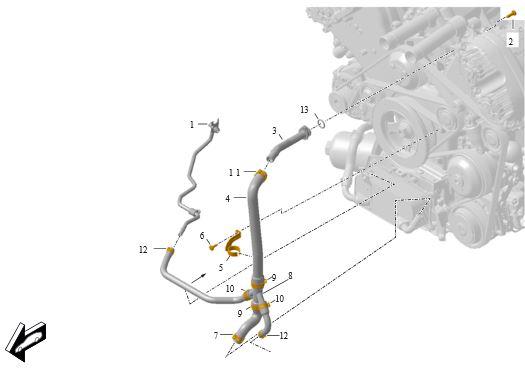

    Fig 1: Exploded View Of Coolant Return
    G09804522Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove both valve covers. → 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER
  7. Remove pulley. → 137619 REMOVING AND REINSTALLING PULLEY (VIBRATION BALANCER)
  8. Remove joint flange from crankshaft sealing ring for pulley.→ 137419 REMOVING AND INSTALLING CRANKSHAFT SEALING RING FOR PULLEY/VIBRATION BALANCER
  9. Remove both turbochargers. → 213019 REMOVING AND INSTALLING TURBOCHARGER
  10. Remove oil pan. → 175019 REMOVING AND INSTALLING OIL PAN
  11. Remove oil guide housing. → 175019 REMOVING AND REINSTALLING OIL GUIDE HOUSING
  12. Remove chain tensioner. → 153619 REMOVING AND INSTALLING CHAIN TENSIONER
