Crash Support To Oil Guide Housing/Timing-Case Cover

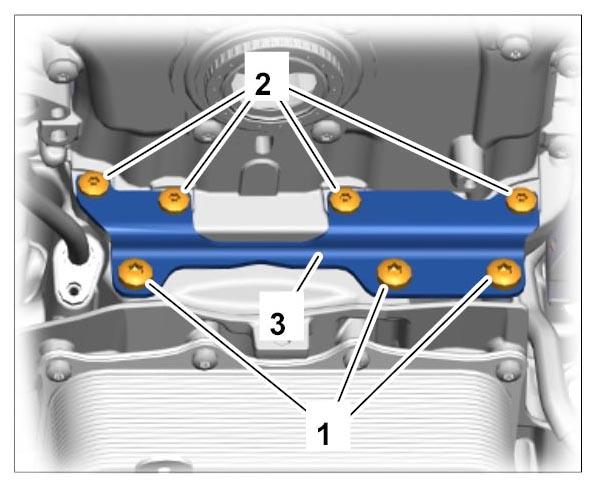

Fig 1: Securing Timing-Case Cover Crash Support To Oil Guide Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Screw, M8 x 20 → Tightening torque: 23 Nm (17 ftlb.)
2. Aluminum screw,  M6 x 30/replace  → Initial tightening: 4 Nm (3 ftlb.)  → Final tightening: +90°
3. Crash support
