Installing Oil Guide Housing

Information

If cold or excessively low-tempered components are sealed to each other by applying sealant, leaks can occur because of condensed water forming or components distorting. Components must be uniformly at least → Temperature: 17°C .

Information

When installing the oil guide housing, make sure that it is perfectly aligned and that there is no dirt or dust between the components. Fit the oil guide housing straight. The maximum offset must be less than 0.1 mm and it must not project over the crankcase. Otherwise, leaks can occur while driving.

Information

The tightening specifications for the basic engine are stored centrally (→ 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS ).

Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

Clean sealing faces on the oil guide housing and crankcase. The sealing faces must be dry and free of grease.
Apply liquid sealant to the oil guide housing.
Apply the sealant with the hand-held cartridge.

The contour of the bead of sealant must be as shown in the figure below.

The sealing bead should be approx. 1.0 mm wide and high.

Ensure that the bead of sealant is continuous and that there are no gaps. → see Fig 1

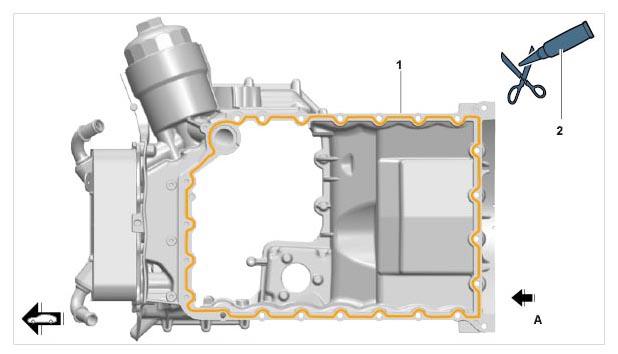

Fig 1: Identifying Sealant Applying Area On Oil Guide Housing (2WD)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Seal application (geometry, 1-mm bead of sealant)
2. Sealant application - Doboseal 224N (999.915.573.43, status 09/08)
1. Direction of travel

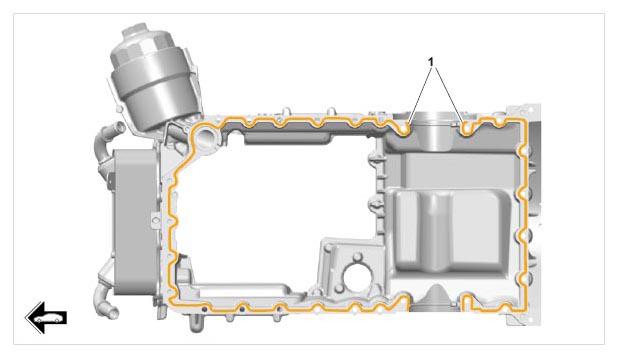

Fig 2: Identifying Sealant Applying Area On Oil Guide Housing (4WD)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Sealant application (geometry, sealing bead 1 mm); Doboseal 224N (999.915.573.43, status 09/08)
Insert a new sealing ring into the ring groove on the lower part of the crankcase and bond it with a very small amount of grease.
Information
- If the transmission or engine is removed, the oil guide housing must be aligned using a dial gauge.
Place oil guide housing on the crankcase and push evenly against the transmission bell housing.
Screw in one fastening screw on each corner of the oil guide housing and tighten screws by hand.
Then screw in all screws by hand. While doing this, push the oil guide housing towards the transmission.
Also fit the two transmission screws and tighten hand-tight.
Beginning at the transmission flange and proceeding forwards, tighten the screws evenly and crosswise.
Do not forget the screws from the top to the timing-case cover. → see Fig 3

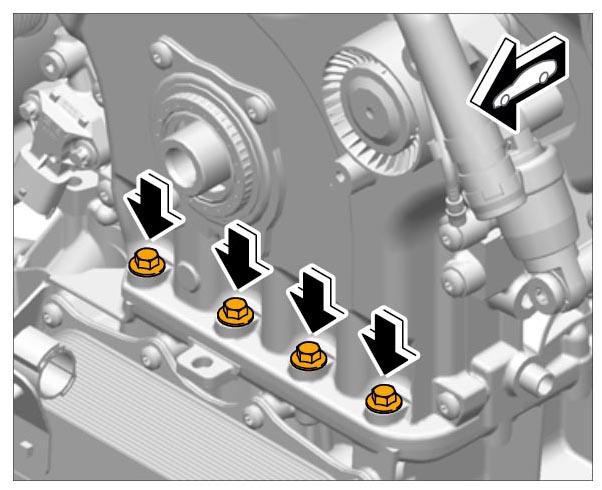

Fig 3: Locating Timing-Case Cover And Oil Guide Housing Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

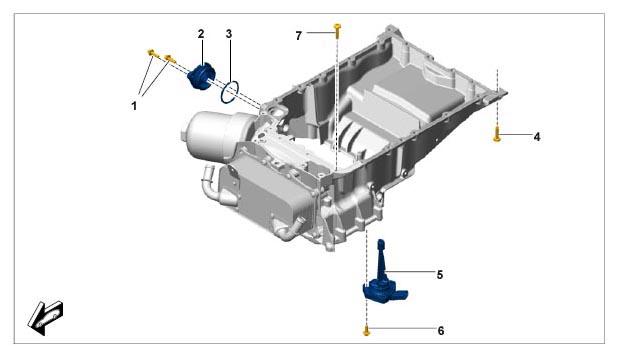

Fig 4: Identifying Oil Guide Housing With Accessories (Example For 2WD)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Screw, M6 x 20
2. Joint flange
3. Sealing ring
4. Oil guide housing to lower part of crankcase - aluminum screw ; always use new aluminum screws!
5. Oil level sensor
6. Oil level sensor to oil guide housing (steel screw)
7. Timing-case cover to oil guide housing - aluminum screw ; always use new aluminum screws!
Tighten the bottom two screws between the transmission and oil guide housing → see Fig 5.
For details, see

→ 343519 REMOVING AND INSTALLING TRANSMISSION

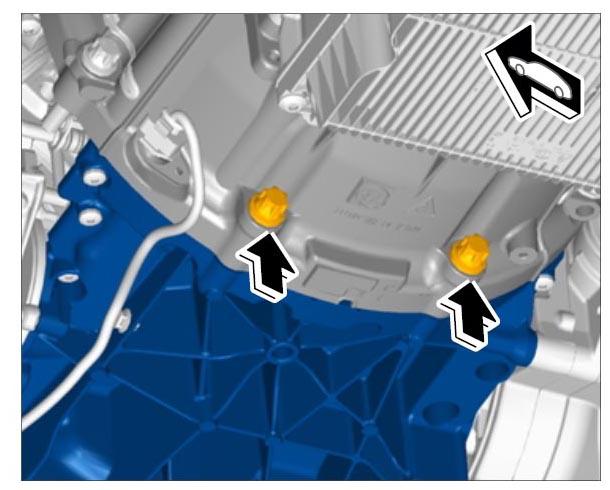

Fig 5: Locating Oil Guide Housing Screws And Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
After fitting the oil guide housing, the connecting tubes (oil lines and oil pipes) between the oil pump and oil guide housing must be fitted → see Fig 6 .
Fit the side oil suction pipes -1- and -2- .

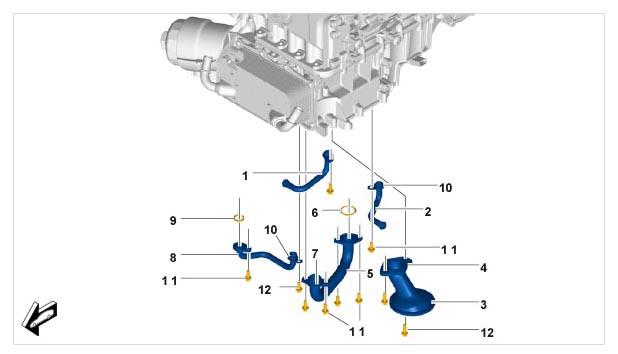

Fig 6: Exploded View Of Oil Lines On Turbo Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Suction pipe between oil pump and turbocharger (fitted in oil guide housing)
2. Suction pipe between oil pump and turbocharger (fitted in oil guide housing)
3. Intake pipe on oil pump
4. Sealing ring
5. Oil pressure pipe
6. Sealing ring
7. Sealing ring; oil before fitting
8. Oil regulating line
9. Sealing ring
10. Sealing ring; oil before fitting
11. Oil pipes to oil pump and oil guide housing
12. Oil pipes to oil pump and oil guide housing

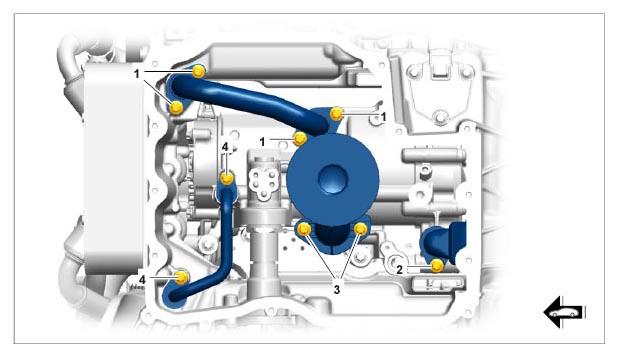

Fig 7: Identifying Oil Lines On Turbo Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Mounting for oil pressure pipe
2. Mounting for oil extraction line for turbocharger, cylinders 5 to 8
3. Mounting for oil extraction line for turbocharger, cylinders 1 to 4
4. Mounting for auxiliary sump intake pipe
5. Mounting for oil pump intake pipe
6. Mounting for oil regulating line

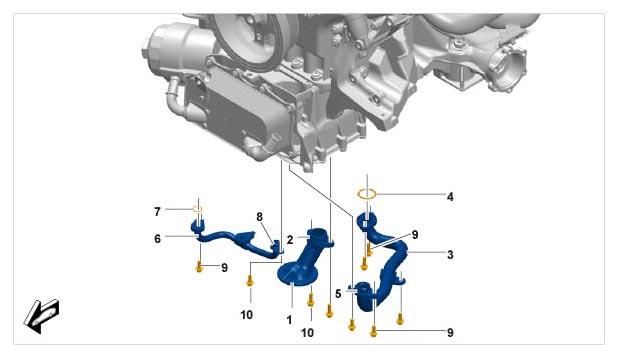

Fig 8: Exploded View Of Oil Lines (Naturally Aspirated Engine)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Oil pump intake pipe; screw M6 x 20
2. Sealing ring
3. Oil pressure pipe; screw M6 x 16
4. Sealing ring
5. Sealing ring; oil before fitting
6. Oil regulating line; screw M6 x 16
7. Sealing ring
8. Sealing ring; oil before fitting
9. Oil pipes to oil pump and oil guide housing
10. Oil pipes to oil pump and oil guide housing

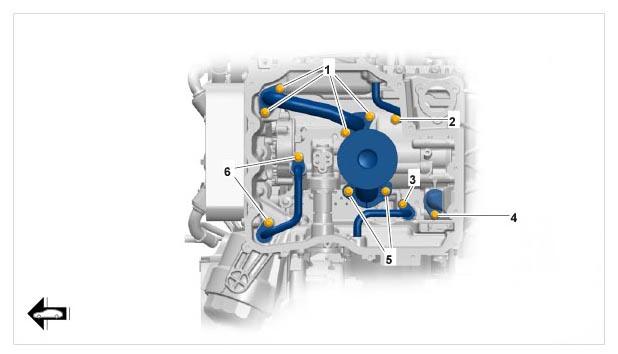

Fig 9: Identifying Oil Lines On Naturally Aspirated Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Mounting for oil pressure pipe
2. Mounting for auxiliary sump intake pipe
3. Mounting for oil pump intake pipe
4. Mounting for oil regulating line
Fit oil pressure control valve → Installing Oil Pressure Control Valve .
Fit the oil pan. → Installing Oil Pan
Insert and fit the oil level sensor by turning it. Plug in connector and lay the cable. → see Fig 10 Fit screws -arrows- . → WM 171119 REMOVING AND INSTALLING OIL LEVEL SENSOR .

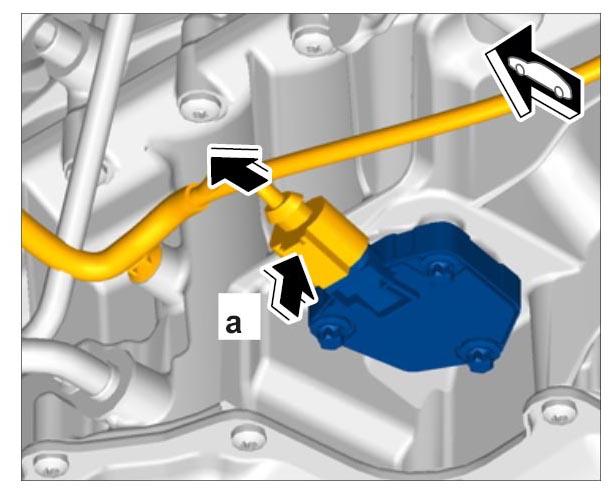

Fig 10: Identifying Oil Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

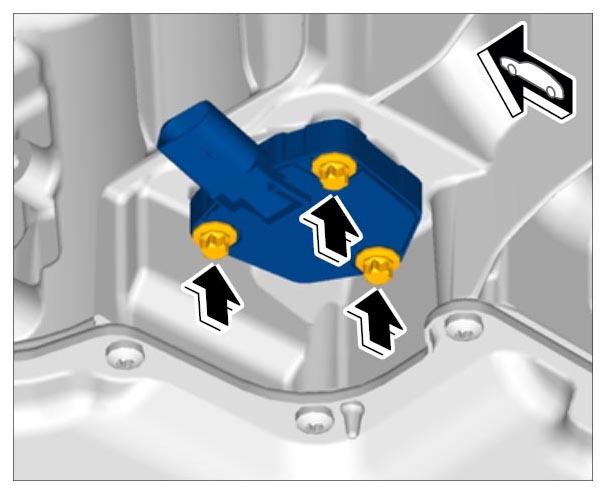

Fig 11: Locating Oil Level Sensor Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the two side oil extraction lines on the turbo engine -5- and (bottom illustration) -5- from the oil guide housing.

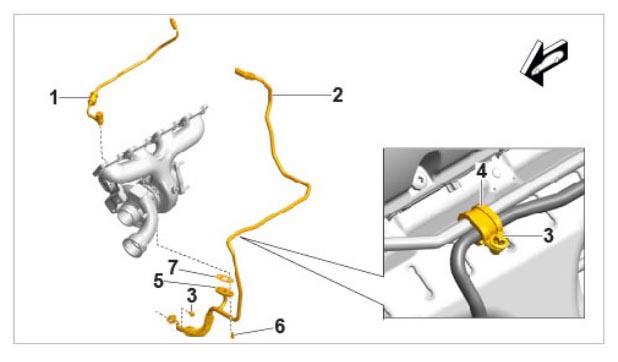

Fig 12: Identifying Oil Circuit For Turbocharger, Cylinders 1 To 4
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Vent line for turbocharger, cylinders 1 to 4; vent line to oil extraction line for turbocharger and holding clamp for vent line to collection pipe
2. Turbocharger oil feed line for cylinders 1 to 4; turbocharger oil feed line at connection piece; turbocharger oil feed line at cylinder head
3. Holder
4. Seal
5. Oil extraction line
6. Screw, M6 x 12; oil extraction line for turbocharger to oil guide housing and oil feed line for turbocharger at the holder
7. Screw, M6 x 16

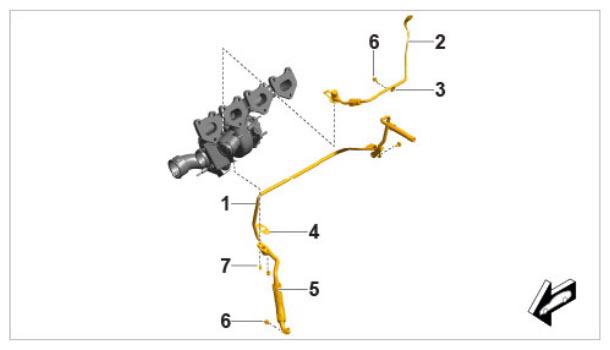

Fig 13: Identifying Oil Circuit For Turbocharger, Cylinders 5 To 8
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Oil feed line for turbocharger, cylinders 5 to 8; oil feed line for turbocharger to connection piece; oil feed line for turbocharger to cylinder head
2. Vent line for turbocharger, cylinders 5 to 8; vent line to oil extraction line for turbocharger
3. M6 screw; oil extraction line for turbocharger to oil guide housing and holding clamp
4. Holding clamp
5. Oil extraction line
6. Screw, M6 x 16
7. Seal
Install one cross shaft cover with the cross shaft pipe -1- . Replace sealing rings in the covers.

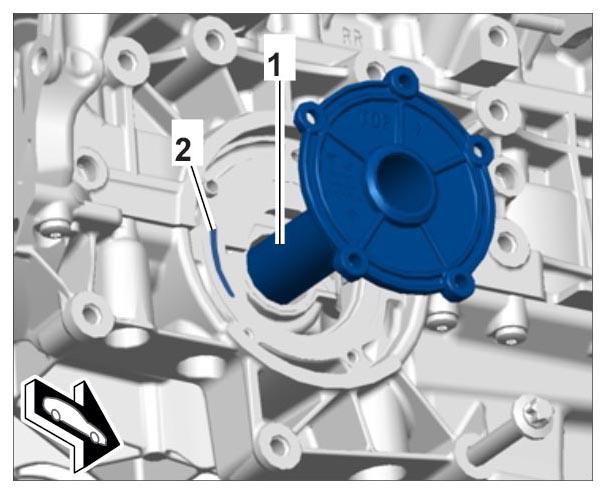

Fig 14: Identifying Cross Shaft Pipe With Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 14.1. Apply housing seal -2- to the seating points of the two cross shaft covers close to the edge of the housing.
2. 14.2. Position cross shaft cover with cross shaft pipe -1- .
  Make sure that the cross shaft pipe is protruding at a center position from the opposite opening on the oil guide housing.

  The -TOP- marking must be facing upwards.
3. 14.3. Screw in fastening screws -arrows- .
Install the second cross shaft cover -1- .

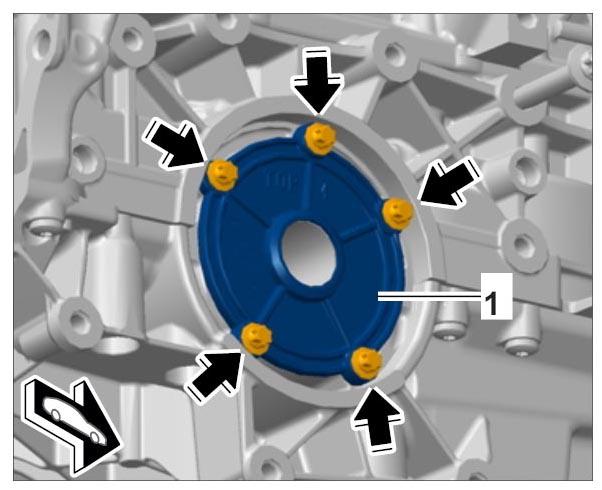

Fig 15: Locating Cross Shaft Cover Mounting Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 15.1. Position cross shaft cover -1- .
  Make sure that the cross shaft pipe is inserted into the center opening on the cover.

  The -TOP- marking must be facing upwards.
2. 15.2. Screw in fastening screws.
Install cross shaft/engine carrier -1- .

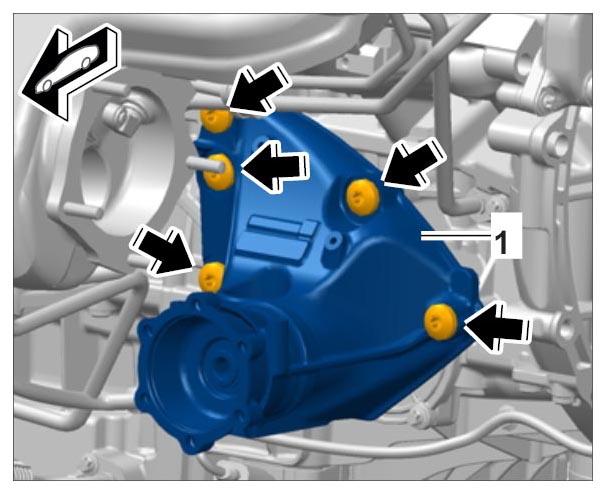

Fig 16: Locating Cross Shaft/Engine Carrier Mounting Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 16.1. Position cross shaft/engine carrier -1- on the left side of the oil guide housing.
2. 16.2. Screw in fastening screws -arrows- .
