Installing Rear Grab Handle

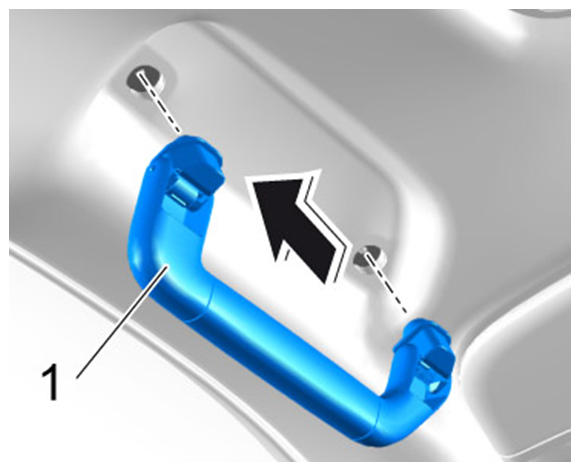

Position grab handle -1- .

Fig 1: Positioning Grab Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

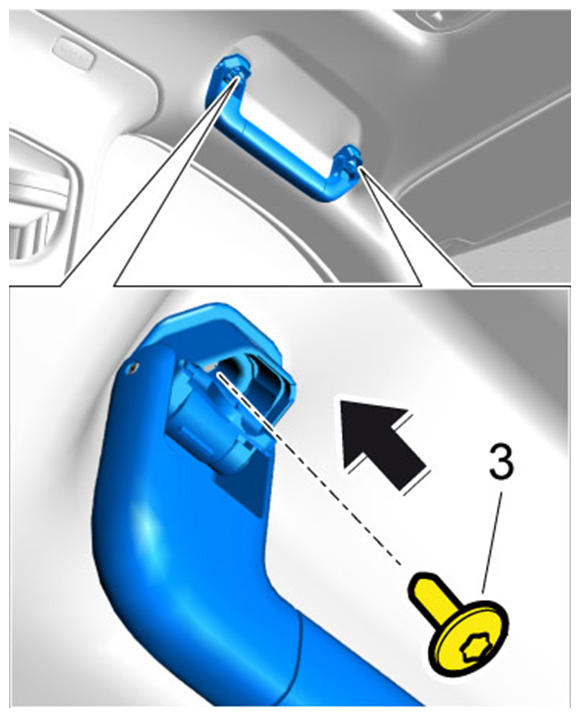

Screw in fastening screws -3- → Tightening torque: 5.5 Nm (4 ftlb) .

Fig 2: Attaching Grab Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

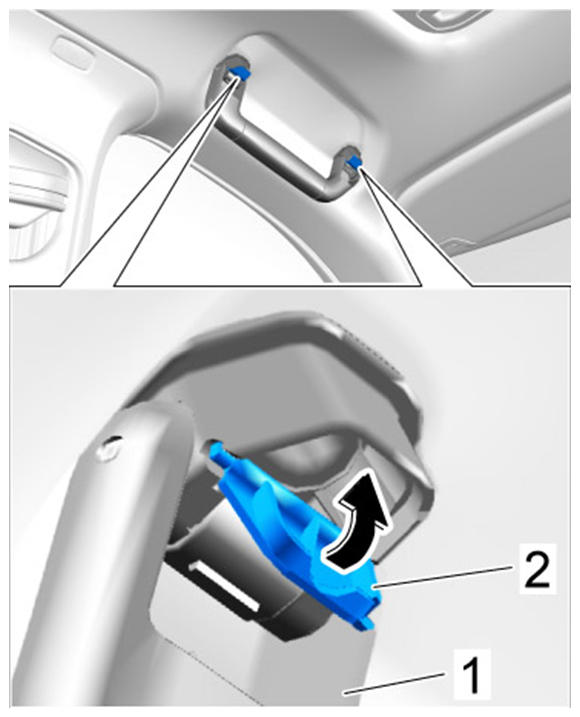

Close covers -2- .

Fig 3: Closing Covers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The handle must return itself to a normal position after it is released!

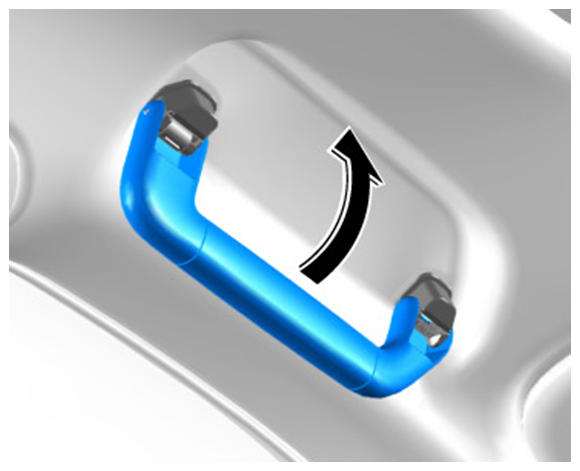

Check fold-in function

Fig 4: Folding In Grab Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
