Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Rear cupholder (Business) to center console   Tightening torque 1.5 Nm (1 ftlb.) +0.2 Nm (+0.1 ftlb.) -0.4 Nm (-0.2 ftlb.)

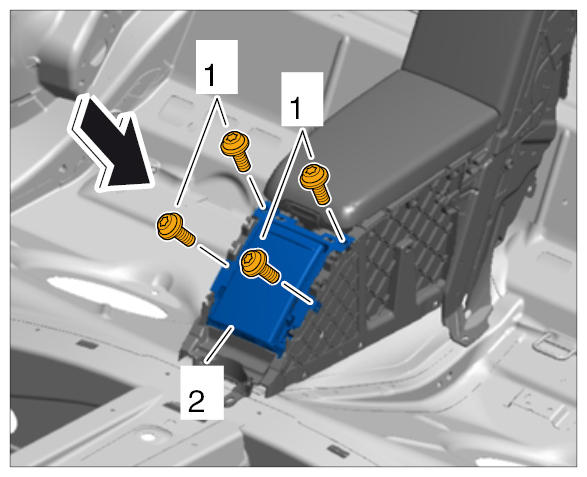

G09811706

Screwing in fastening screws
