Installing Rear Cupholder (Business)
- Grease rear cupholder (Business) at the marked areas using Fett FJ from PMMOIL
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Open and close rear cupholder (Business) several times. Remove excess grease.

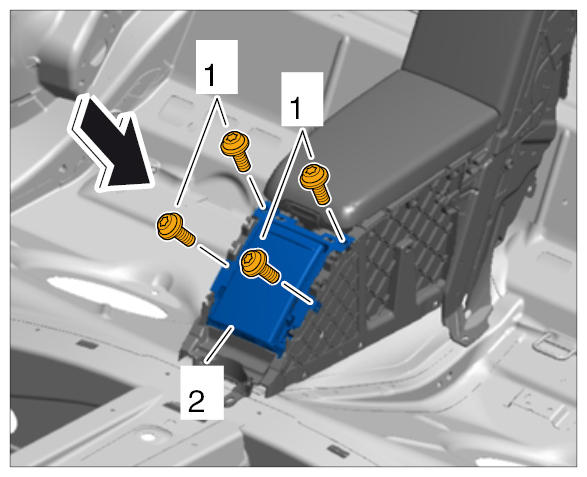

- Place rear cupholder (Business) -2-
in installation position -arrow-
and tighten fastening screws to the specified tightening torque -1- Tightening torque 1.5 Nm (1 ftlb.) +0.2 Nm (+0.1 ftlb.) -0.4 Nm (-0.2 ftlb.)
until secure.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

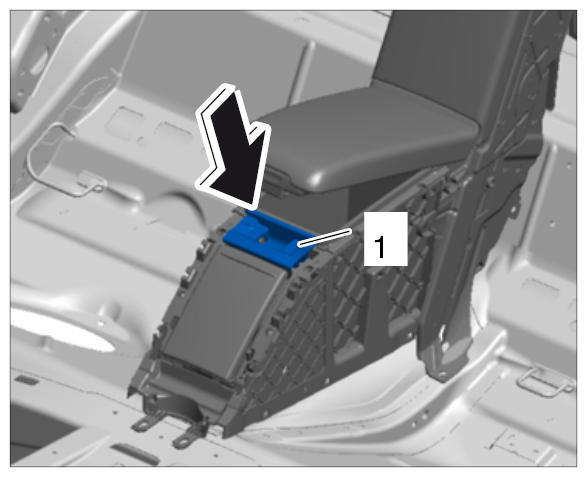

- Clip in rear center console trim -1-
(-arrow-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

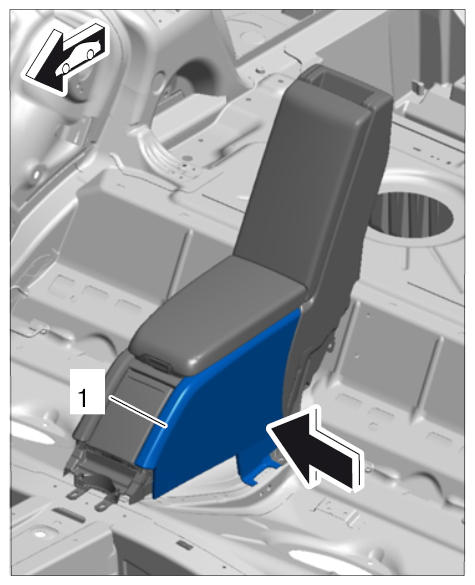

- Clip in side panel -1-
at both sides -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
