Removing Rear Ashtray

  1. Remove rear ashtray light.
    1. 1.1. Disconnect plug connection -A-  .
    2. 1.2. Unclip rear ashtray light -B-  and remove it.

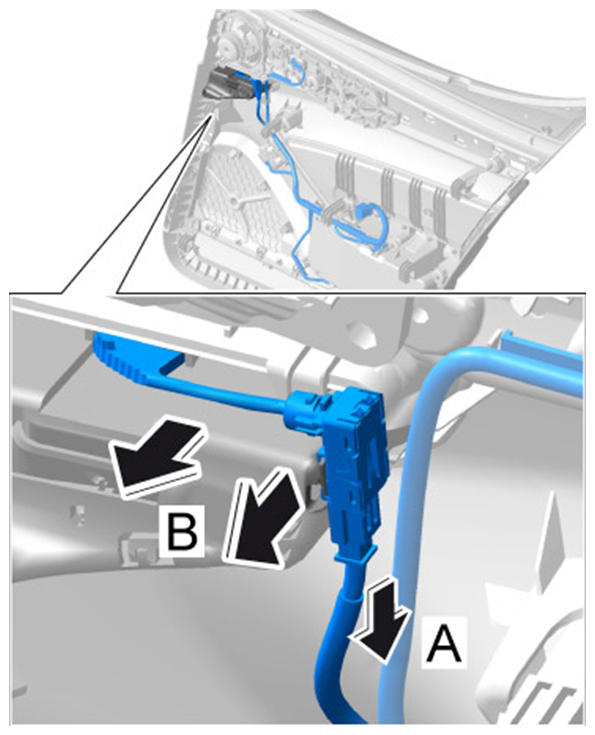

      3. Fig 1: Removing Ashtray Light
      G09811639Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release rear ashtray -A-  and remove it -B-  .

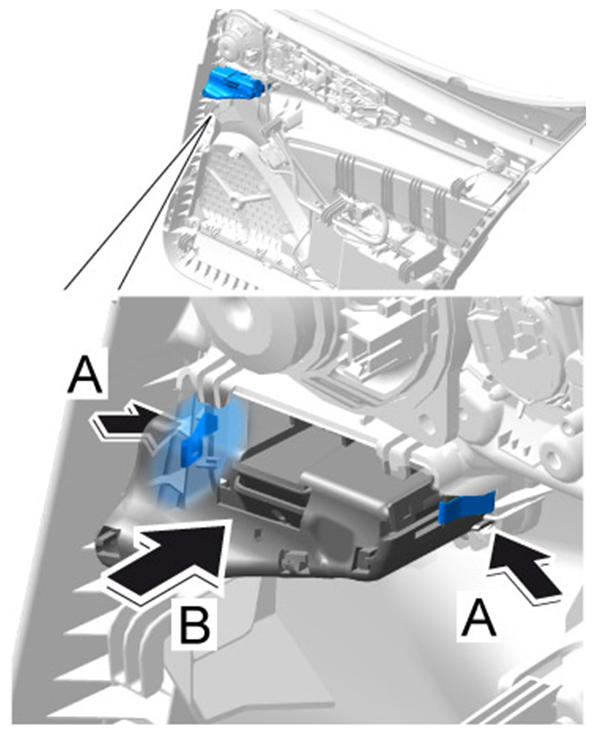

    Fig 2: Removing Rear Ashtray
    G09811640Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Insert rear ashtray, ensuring that it engages securely.

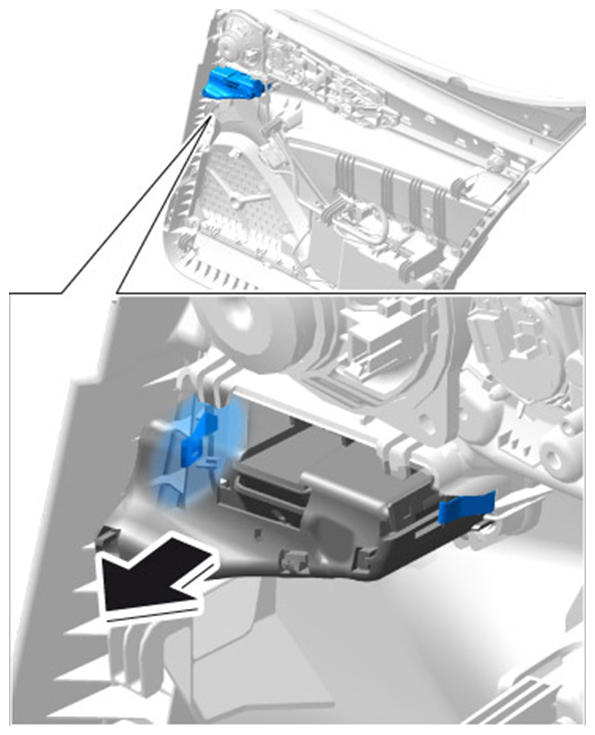

    Fig 3: Installing Rear Ashtray
    G09811641Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Install rear ashtray light.
    1. 4.1. Clip in rear ashtray light -A-  , ensuring that it engages securely.
    2. 4.2. Connect plug connection -B-  .
    3. 4.3. Check that the plug connection is fitted securely.

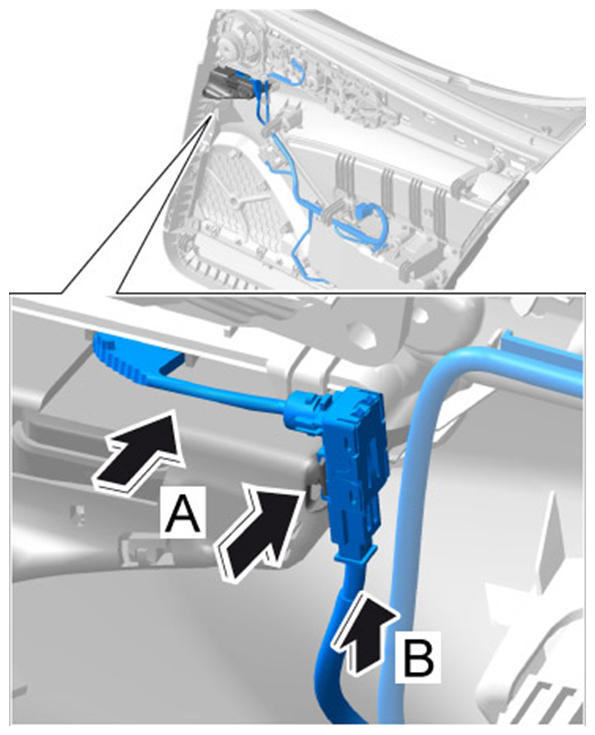

    Fig 4: Installing Ashtray Light
    G09811642Courtesy of PORSCHE CARS NORTH AMERICA, INC.
