Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing lower part of center console cover   Tightening torque 2.5 Nm +/-0.5 Nm (+/- 0.5 ftlb.)
G09811609

Securing cover


Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing lower part of center console cover   Tightening torque 2.5 Nm +/-0.5 Nm (+/- 0.5 ftlb.)

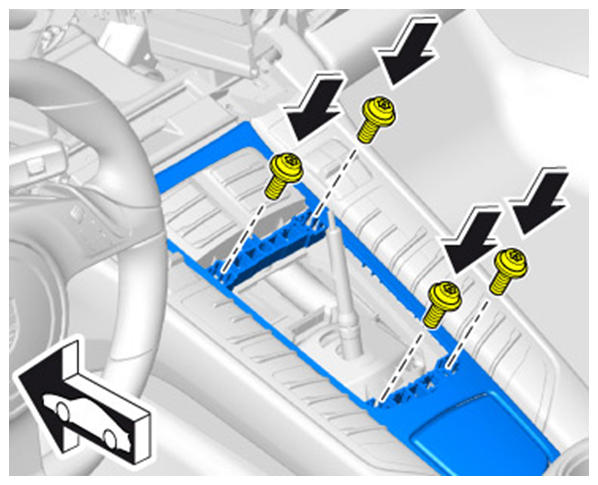

G09811623

Securing cover
