Removing Front Ashtray Cover

Information

• The cover can only be removed and installed when the ashtray is installed.

1. Open front ashtray.
2. Detach front ashtray cover.
   1. 2.1. Insert a screwdriver into the side next to the chrome insert between the cover and ashtray lid.
   2. 2.2. Turn screwdriver carefully until the fastening parts -1-  become loose.
   3. 2.3. Remove front ashtray cover upwards.

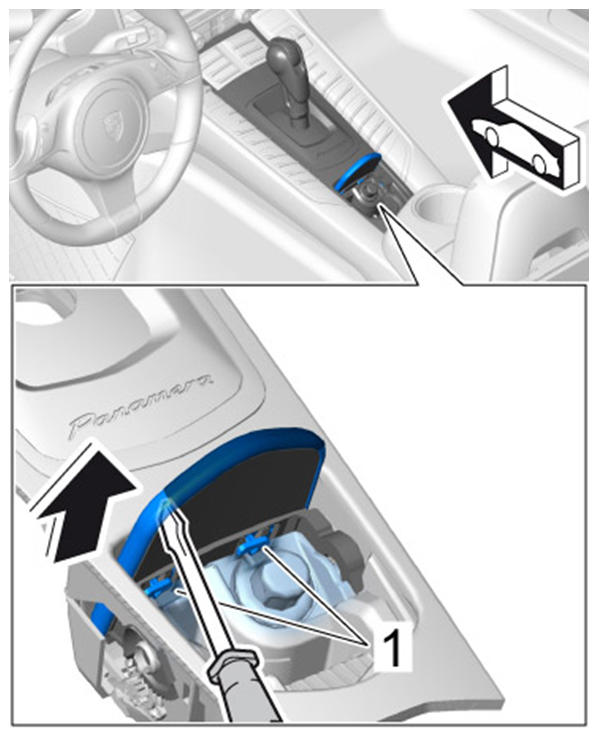

   Fig 1: Detaching Front Ashtray Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
