Removing Shelf

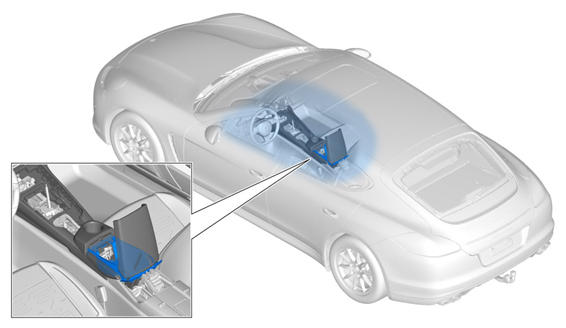

Fig 1: Identifying Oddments Tray Shelf Installation Location
G09811585Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip shelf.

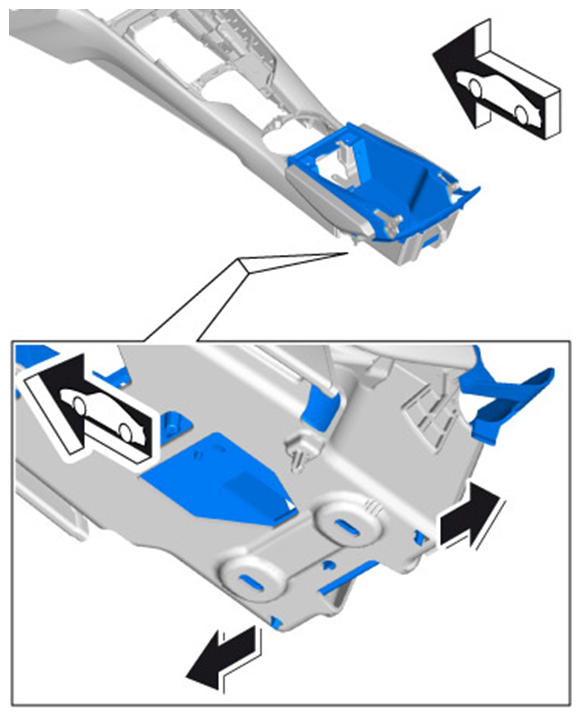

    Fig 2: Removing Shelf Clip
    G09811586Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Lift oddments tray up and out.

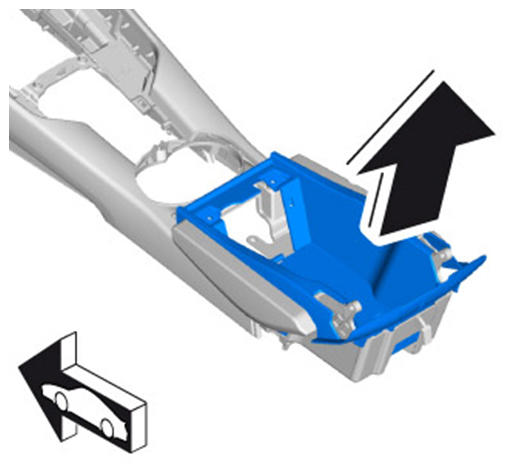

    Fig 3: Removing Oddments Tray
    G09811587Courtesy of PORSCHE CARS NORTH AMERICA, INC.
