Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screws for glove compartment, inner/outer | Tightening torque | 3.2 Nm (2 ftlb.) | |||
|
Securing glove compartment at the top (inner) |
|||||

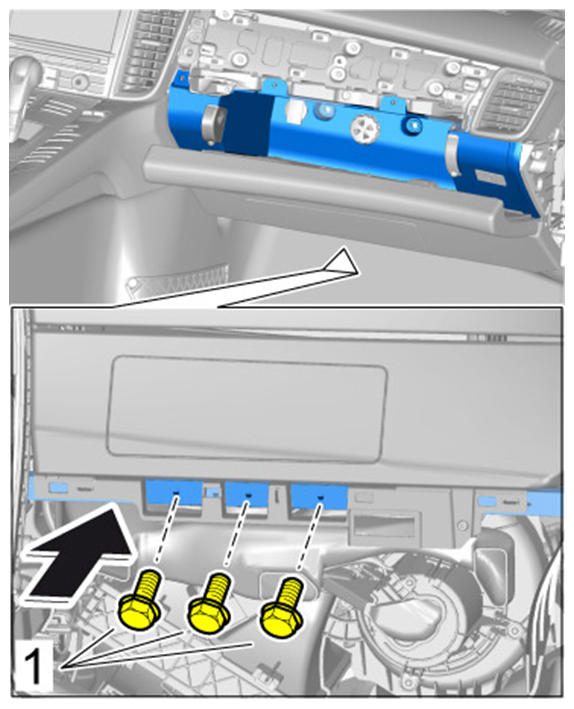

| Inner fastening screws for glove compartment | Tightening torque | 3.2 Nm (2 ftlb.) | |||
|
Securing glove compartment on the inside |
|||||

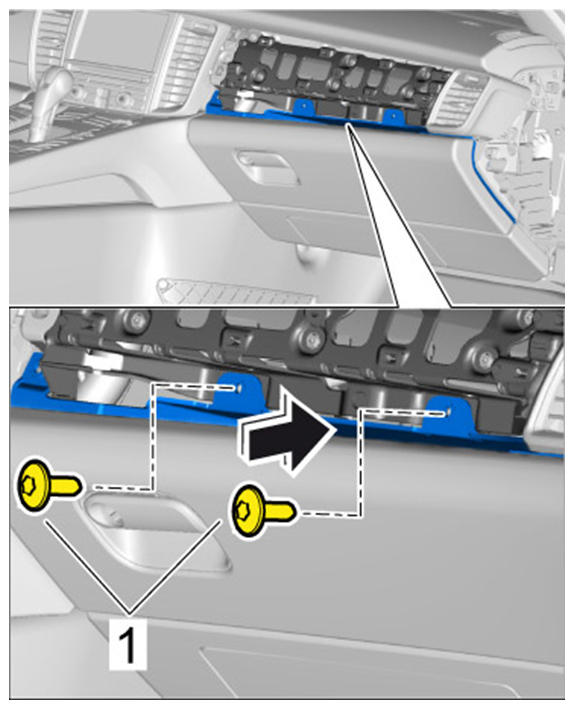

| Fastening screws for glove compartment, top | Tightening torque | 3.2 Nm (2 ftlb.) | |||
|
Securing glove compartment at the top |
|||||

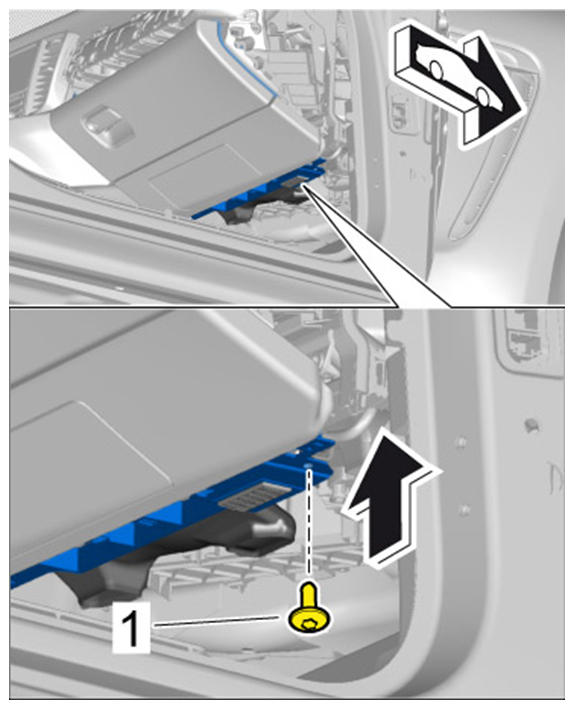

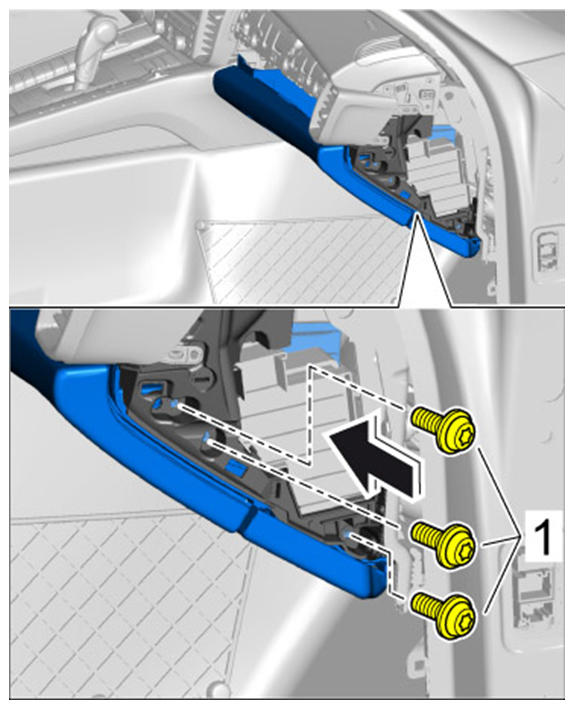

| Fastening screws for glove compartment, lateral | Tightening torque | 3.2 Nm (2 ftlb.) | |||
|
Securing glove compartment at the sides |
|||||

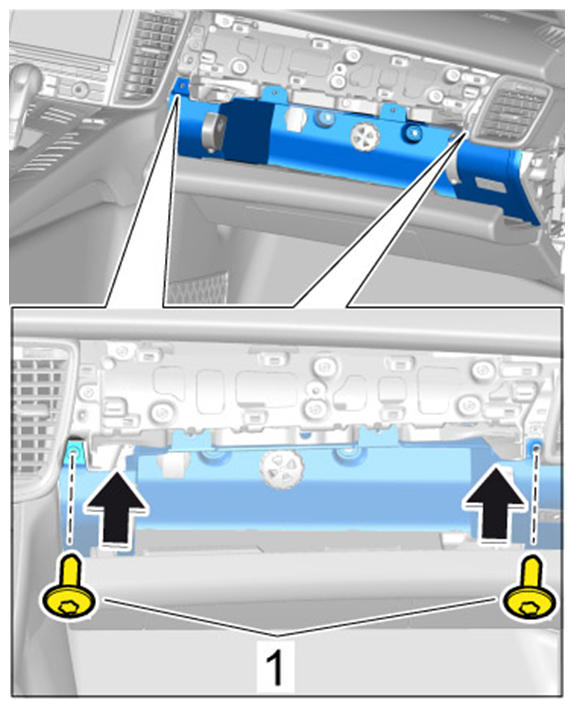

| Fastening screws for knee airbag strut | Tightening torque | 8 Nm | +/-0.8 Nm (+/- 0.5 ftlb.) | ||
|
Securing strut for knee airbag |
|||||

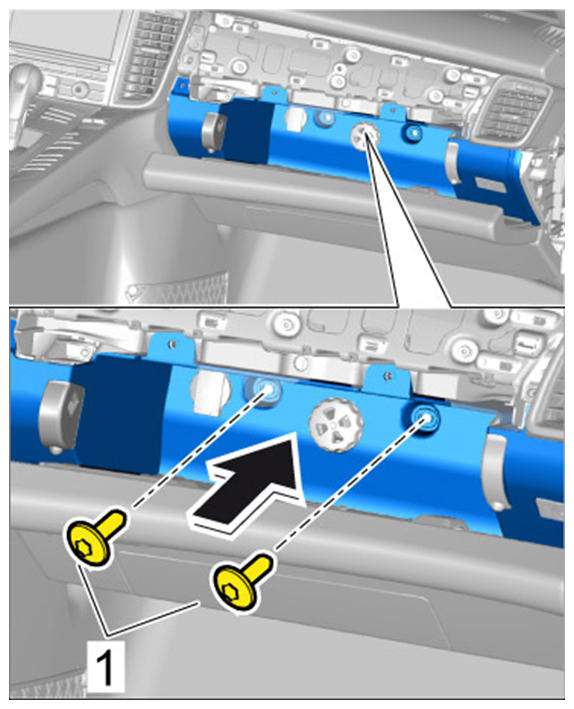

| Fastening screws for ventilation duct | Tightening torque | 3.2 Nm | |||
|
Securing ventilation duct |
|||||
