Installing Glove Compartment Lid

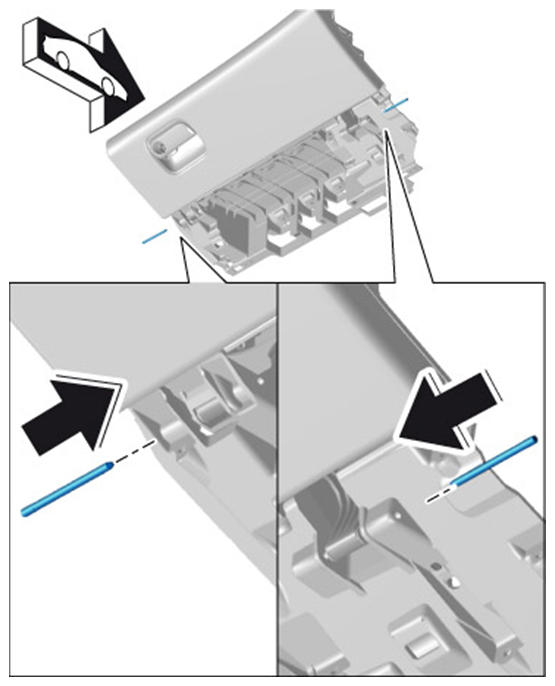

Position glove compartment lid and drive in hinge bolts at the left and right from the outside in -arrow- .

Fig 1: Driving Glove Compartment Lid In Hinge Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

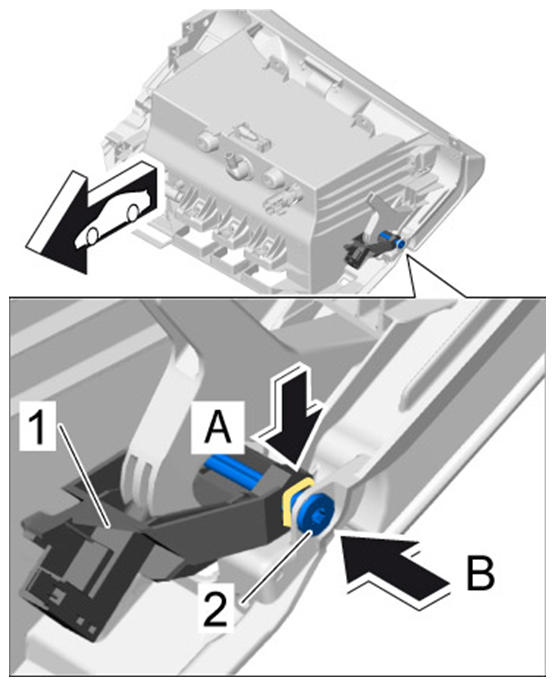

Install glove compartment light switch.
1. 2.1. Place switch -1- in installation position.
2. 2.2. Screw in fastening screw -2- (-arrow B- ).
3. 2.3. Slide on cotter pin -arrow A- until it engages securely.

  Fig 2: Installing Switch
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

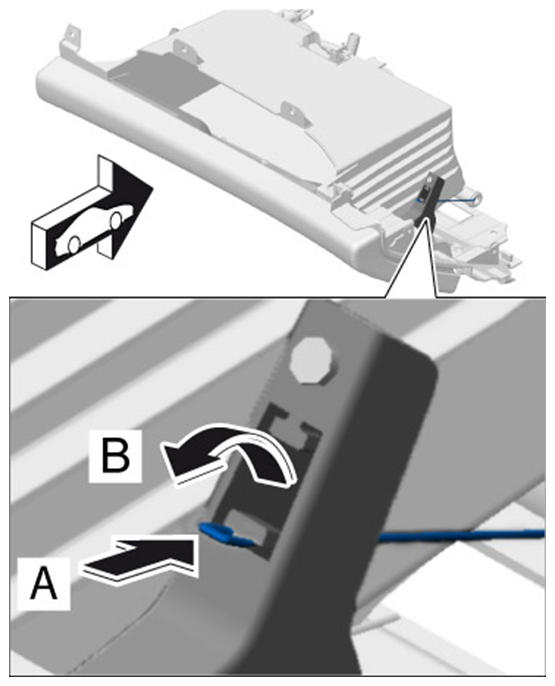

Pull loop for rebound damping mechanism (glove compartment lid damper) over the bracket -arrow B- and engage it in the bracket -arrow A- .

Fig 3: Engaging Loop
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
