Installing Glove Compartment Lock

Lift the handle and slide the lock into the mounting on the handle from the opposite side in contrast to the installation position before removal.

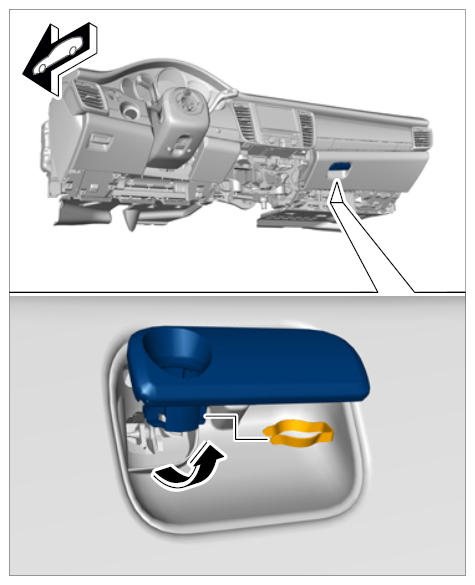

Fig 1: Sliding Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert glove compartment lock until it engages securely.

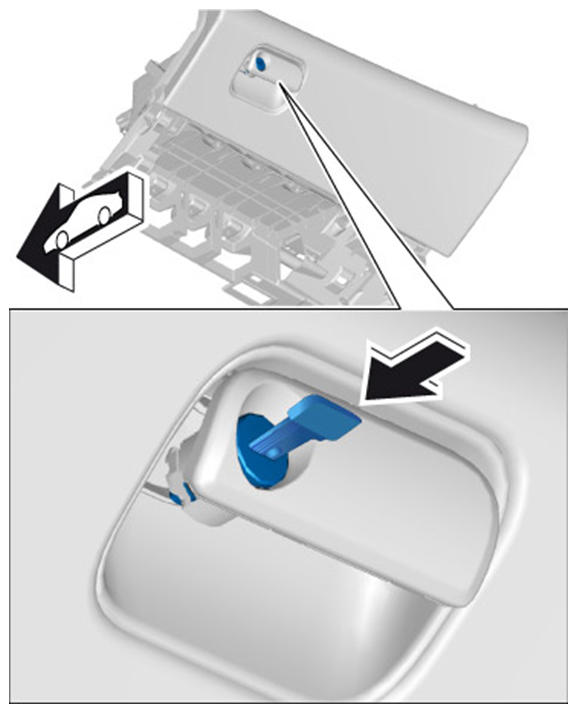

Fig 2: Sliding Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carry out a function test with the glove compartment lid open.
