Preliminary Work

  1. Remove cowl panel cover. → 508719 REMOVING AND INSTALLING COWL PANEL COVER
  2. Remove plenum panel cover. → 852219 REMOVING AND INSTALLING PLENUM PANEL COVER
  3. Pull off plug connection for PASM -arrow-  on upper spring strut.

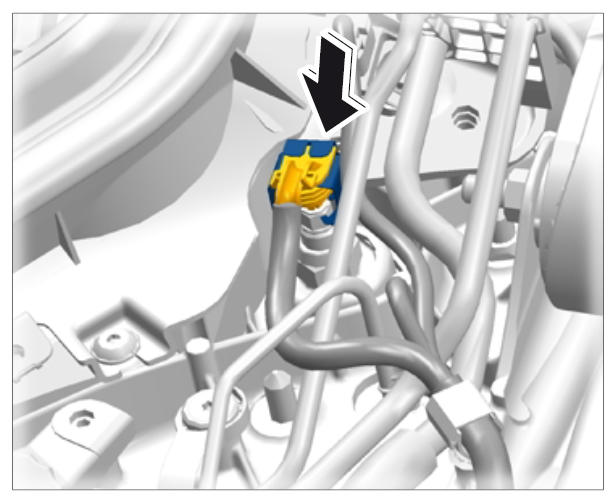

    Fig 1: Locating PASM Plug Connection
    G09807816Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Raise the vehicle. → 4X00IN LIFTING THE VEHICLE
  5. Bleed the relevant air spring using PIWIS Tester II 9818  . → 4301IN BLEEDING AND FILLING THE LEVELLING SYSTEM
  6. Remove wheel → 440519 REMOVING AND INSTALLING WHEEL .
