Air-Conditioning Compressor
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

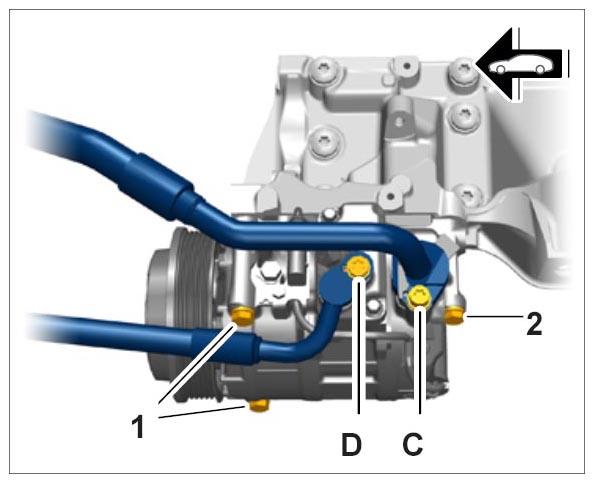

| Fastening screw securing intake pipe to compressor, M8 | -C- | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Tightening torques |
|||||
| Fastening screw securing pressure line to compressor, M8 | -D- | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Tightening torques |
|||||
| Fastening screw securing M10 oil filler screw to air-conditioning compressor | Tightening torque | 26 Nm (19 ftlb.) | |||
|
Tightening torques |
|||||
| Fastening screw securing air-conditioning compressor to engine | -1-, M8 x 95 | Tightening torque | 23 Nm (17 ftlb.) | ||
|
Tightening torques |
|||||
| Fastening screw securing air-conditioning compressor to engine | -2-, M10 x 90 | Tightening torque | 46 Nm (34 ftlb.) | ||
|
Tightening torques |
|||||

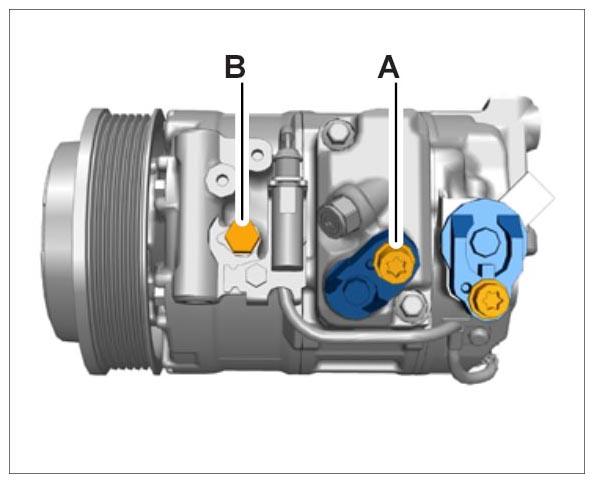

| Oil filler screw to air-conditioning compressor | B | Tightening torque | 26 Nm (19 ftlb.) | ||
|
Cap and oil filler screw |
|||||
