Tightening Torques

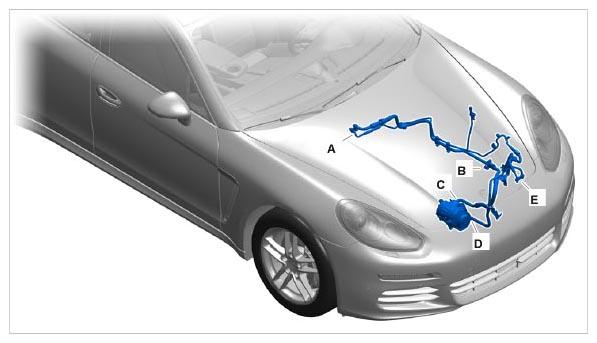

| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw for pressure and intake pipe on expansion valve, M8 | -A- | Tightening torque | 14 Nm (10.5 ftlb.) | ||
| Fastening screw for refrigerant line, M8 | -B- | Tightening torque | 14 Nm (10.5 ftlb.) | ||
| Fastening screw securing intake pipe to compressor, M8 | -C- | Tightening torque | 20 Nm (15 ftlb.) | ||
| Fastening screw securing pressure line to compressor, M8 | -D- | Tightening torque | 20 Nm (15 ftlb.) | ||
| Fastening screw securing refrigerant lines to condenser, M8 | -E- | Tightening torque | 14 Nm (10.5 ftlb.) |
Information
- When installing the refrigerant lines, the screw connections and the O-rings must always be wetted with refrigerant oil!
- The extracted refrigerant oil must be disposed of as special-category waste!
