Component Overview
Information
The oil pressure control valve is located on the right side of the oil guide housing, at the front next to the oil filter.

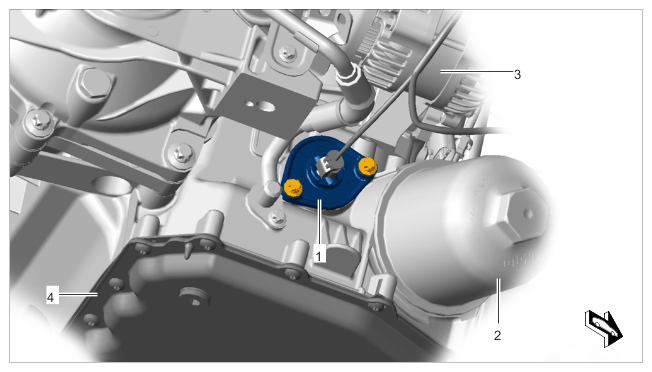

Installation position
| 1 | Oil pressure control valve flange |
| 2 | Engine oil filter |
| 3 | Generator |
| 4 | Oil pan |
Oil guide housing with accessories
| 1 | Screw, M6 x 20 |
| 2 | Joint flange |
| 3 | Sealing ring |
| 4 | Oil guide housing to lower part of crankcase - aluminum screw; always use new aluminum screws |
| 5 | Oil level sensor |
| 6 | Oil level sensor to oil guide housing (steel screw) |
| 7 | Timing-case cover to oil guide housing - aluminum screw; always use new aluminum screws |

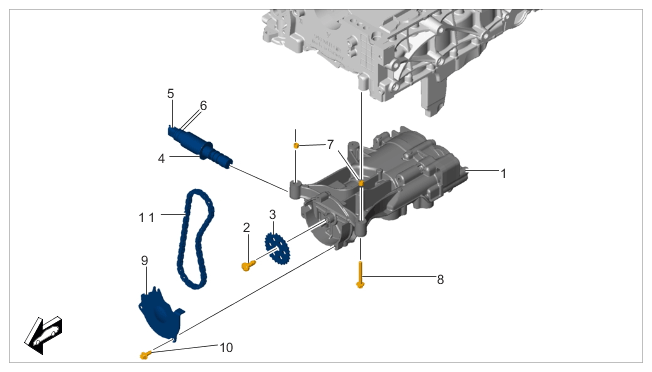

Oil pump
| 1 | Oil pump |
| 2 | Screw, M8 x 22; replace |
| 3 | Oil pump sprocket |
| 4 | Cap screw, M36 |
| 5 | Solenoid valve (oil pressure control valve) |
| 6 | Sealing rings (grease before fitting) |
| 7 | Dowel sleeve |
| 8 | Screw, M6 x 45 |
| 9 | Sprocket cover |
| 10 | Screw, M6 x 16 |
| 11 | Drive chain |
Oil pressure control valve and tool
| 1 | Screw, M6 x 20 |
| 2 | Joint flange with sealing ring |
| 3 | Cap screw, M36 |
| 4 | Oil sealing ring with engine oil |
| 5 | Solenoid valve/oil pressure control valve |
| 6 | Special socket > 9753 - socket-wrench insert |
| 7 | Puller > 9235 - relay puller |
