Installing Oil Level Sensor

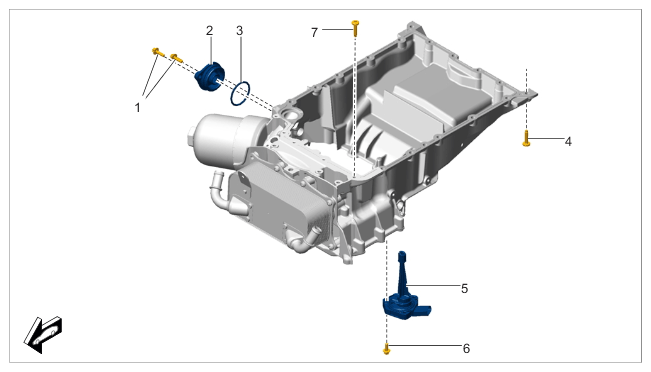

Fig 1: Oil Guide Housing With Accessories Components Location (2WD)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil guide housing with accessories (example for 2WD)

1	Screw, M6 x 20
2	Joint flange
3	Sealing ring
4	Oil guide housing to lower part of crankcase - aluminum screw; always use new aluminum screws
5	Oil level sensor
6	Oil level sensor to oil guide housing (steel screw)
7	Timing-case cover to oil guide housing - aluminum screw; always use new aluminum screws

Replace sealing ring for oil level sensor.

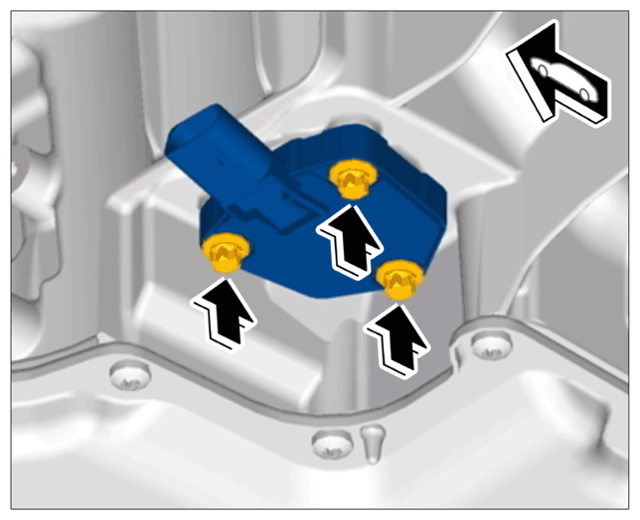

Fit oil level sensor. Turn carefully when inserting sensor. Tighten the three fastening screws.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
Fit cable plug.
