Special Features - V6

Information

Please note the following for the V6 =>

The repair concepts for the V6 are the same as for the V8.
The special features and component deviations are listed and shown in
> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS
More significant deviations are shown in separate descriptions.
If no special features are specifically highlighted, the assembly and adjustment instructions for the V8 apply.

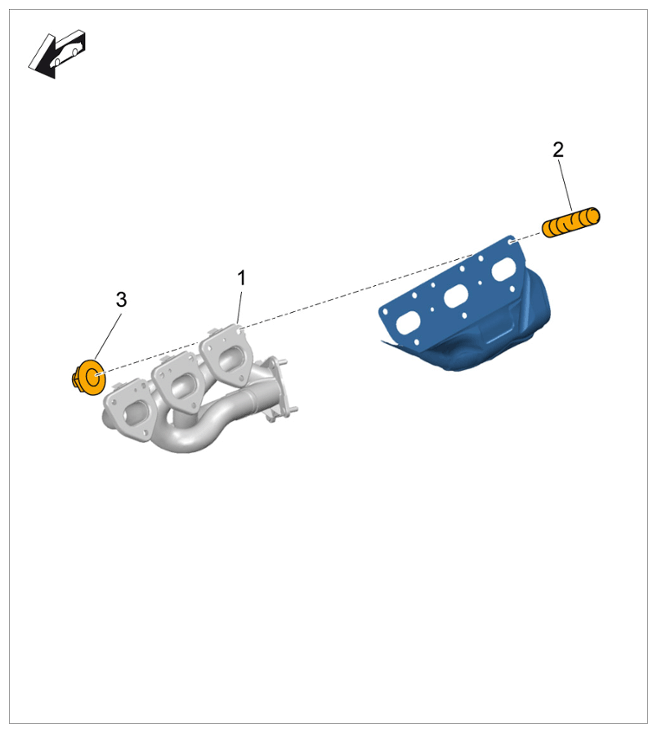

Fig 1: Exhaust Manifold Seal, Cylinders 1 To 3 Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust manifold seal, cylinders 1 to 3

1	Exhaust manifold
2	Stud, M8
3	M8 hexagon nut; replace; (check nuts by clicking once); observe correct tightening sequence
-	Exhaust manifold seal
-	M6 screw; heat shield to exhaust manifold

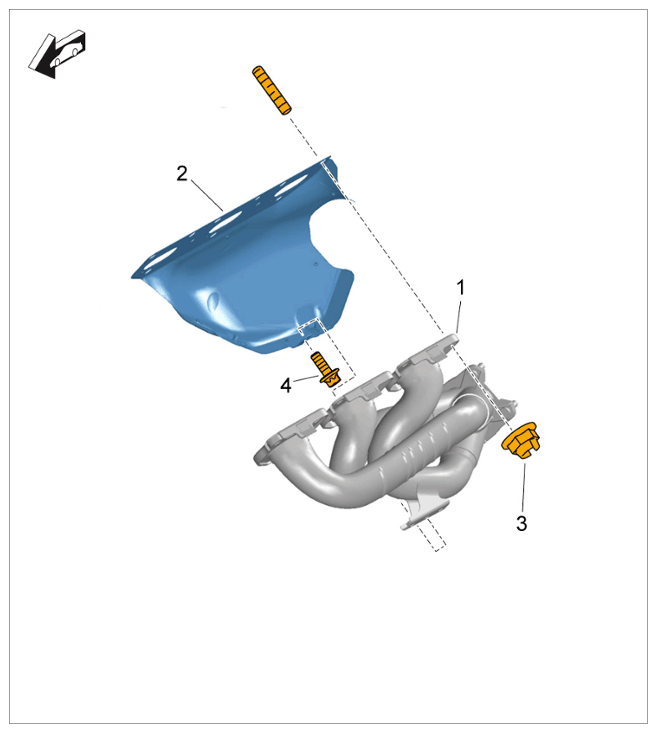

Fig 2: Exhaust Manifold Seal, Cylinders 4 To 6 Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust manifold seal, cylinders 4 to 6

1	Exhaust manifold
2	Seal
3	M8 hexagon nut; replace; (check nuts by clicking once); observe tightening sequence
4	M6 screw; heat shield to exhaust manifold

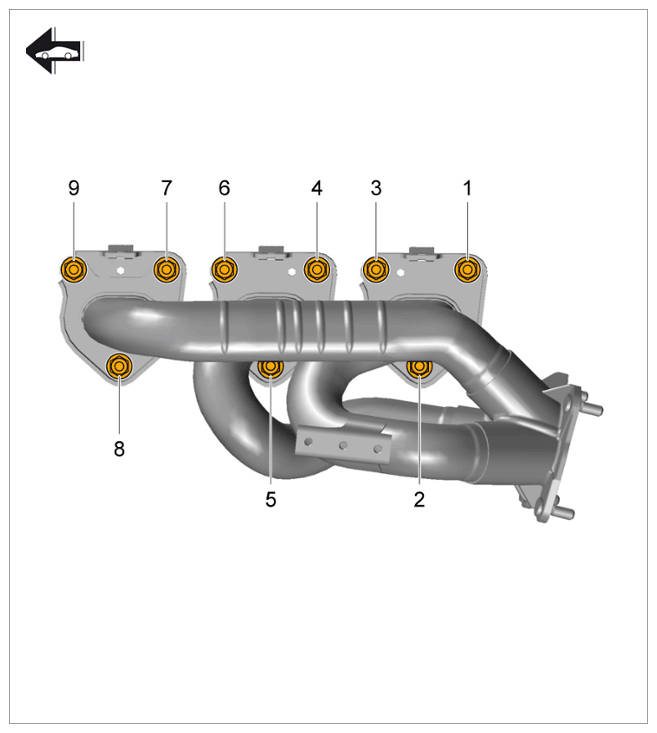

Fig 3: Exhaust Manifold Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust manifold tightening sequence, cylinders 1 to 3

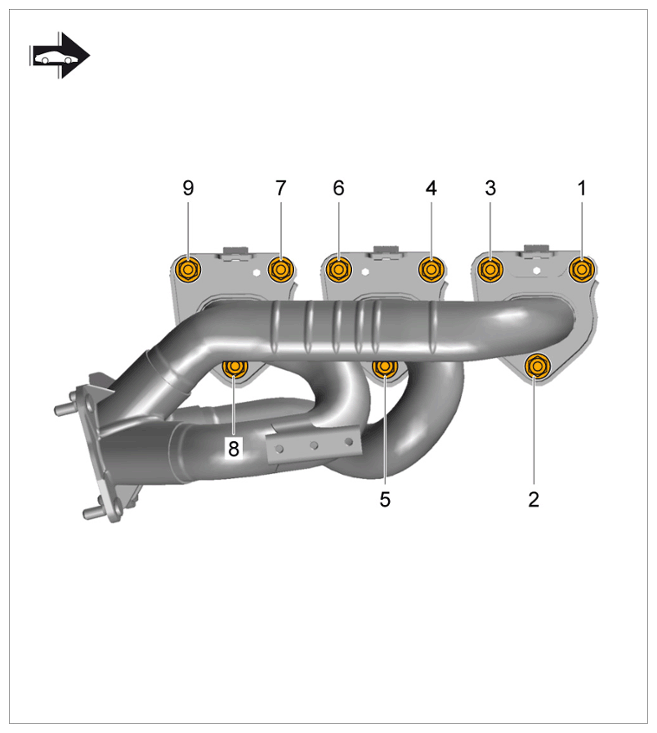

Fig 4: Exhaust Manifold Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust manifold tightening sequence, cylinders 4 to 6
