Removing Coolant Pump For High-Temperature System

→ Let the fluid cool down.

→ Wear personal protective gear.

1. Remove heater valve. → 196919 REMOVING AND INSTALLING HEATER VALVE
2. Disconnect electric plug connection -1-  and pull off coolant hoses -2-  . Unscrew fastening screw -3-  and carefully remove the coolant pump.

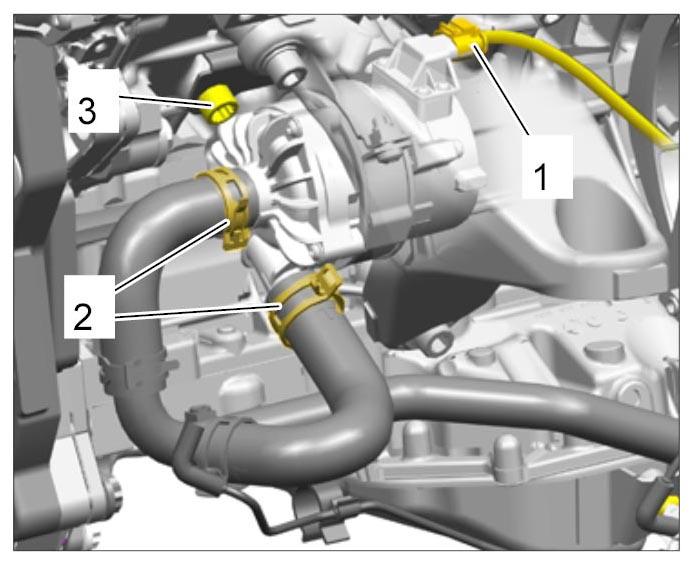

   Fig 1: Identifying Coolant Pump Electric Plug Connection, Coolant Hoses, Screws (Low-Temperature System)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
