Installing Rear B-Pillar Cover

  1. Guide in B-pillar cover and align it according to the markings.

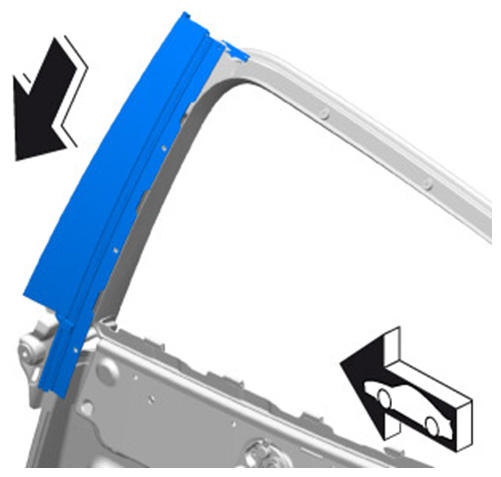

    Fig 1: Fitting B-Pillar Cover
    G09811511Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in fastening screws -2-  and tighten to the specified tightening torque Tightening torque 3.5 Nm +10°  until secure.

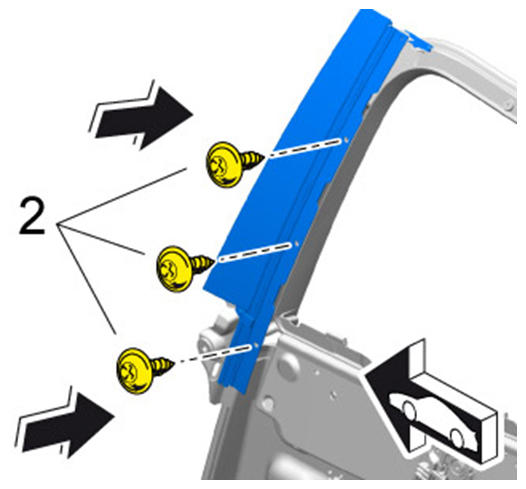

    Fig 2: Securing B-Pillar Cover
    G09811512Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove markings.
