Installing PASM Control Unit

  1. Insert control unit into the holder and clip it securely to the holder.
  2. Fit and clip in retaining bar.
  3. Plug in and lock the electric connectors.
  4. Position control unit and holder and secure them with the three fastening nuts. Tightening torque 9.7 Nm (7.5 ftlb.)

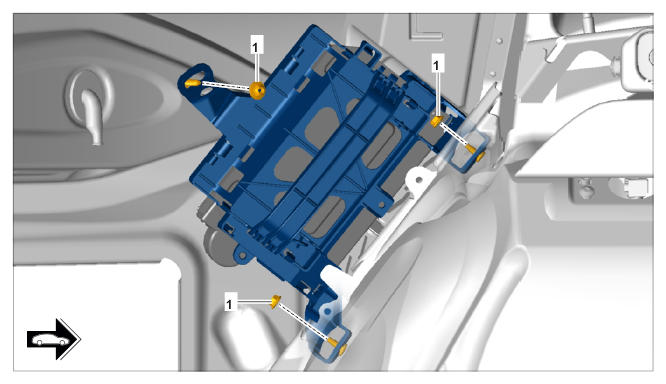

    Fig 1: Securing Holder With Fastening Screws
    G09807799Courtesy of PORSCHE CARS NORTH AMERICA, INC.
