Servo Motor For Rear Air Distribution

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing servo motor to air distributor -1- Tightening torque 1.1 Nm (0.5 ftlb.)

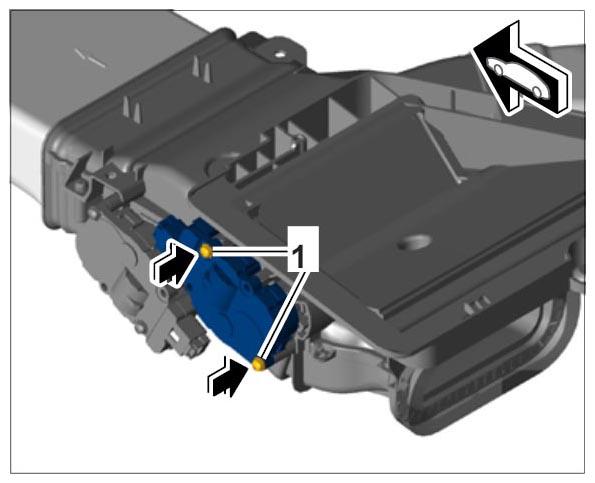

Fig 1: Tightening Servo Motor Fastening Screws
G09813052Courtesy of PORSCHE CARS NORTH AMERICA, INC.
