Installing Control Unit For Distance Measuring Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Position holder together with control unit for distance measuring sensor.
  2. Position holder on the bumper and secure using the two fastening screws -1-

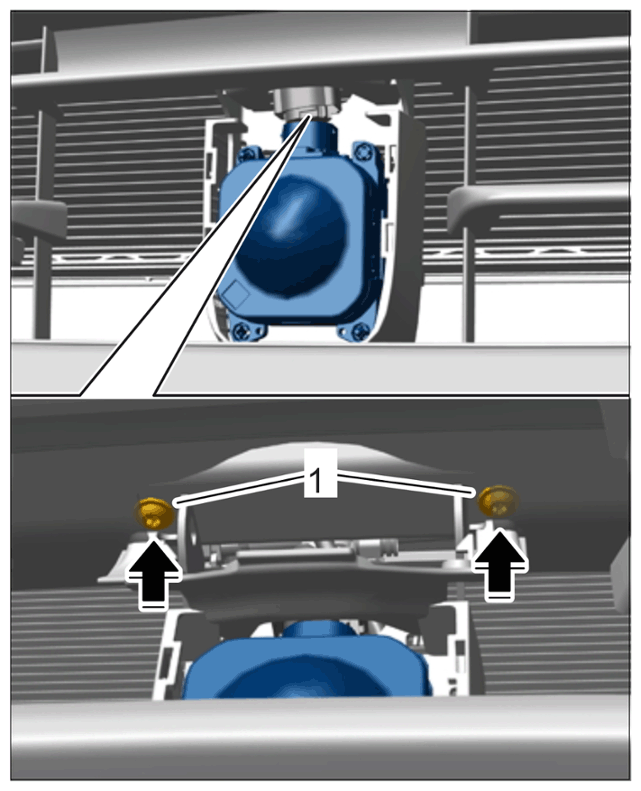

    G15198947Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Securing holder

  3. Press in the electric plug until it clicks into place.
  4. Position covers for distance measuring sensor and clip them in.

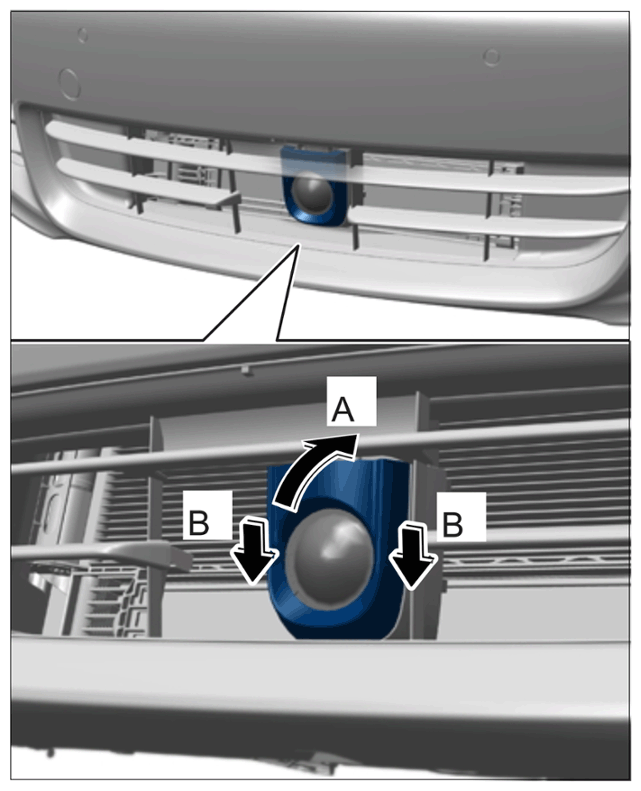

    G15198948Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fitting cover for distance measuring sensor
