Adjusting Control Unit For Distance Measuring Sensor

WARNING: This page is about a different variant/trim than selected.
  1. A battery charger with a current rating of at least 40 A must be connected to the external power feed points.
  2. Connect > 9818 - PIWIS Tester II  to the vehicle and start it up.
  3. Switch on ignition.
  4. Select the vehicle and adaptive cruise control  control unit and press to continue.
  5. In the Adaptive cruise control  menu select the Maintenance, repairs  submenu and press to continue.
  6. Follow the instructions on the Tester and, if necessary, adjust the sensor -1-  using the adjusting tool > VAS 6190/2 - T-bar Setting Tool for ACC Sensor  in line with the Tester specifications.

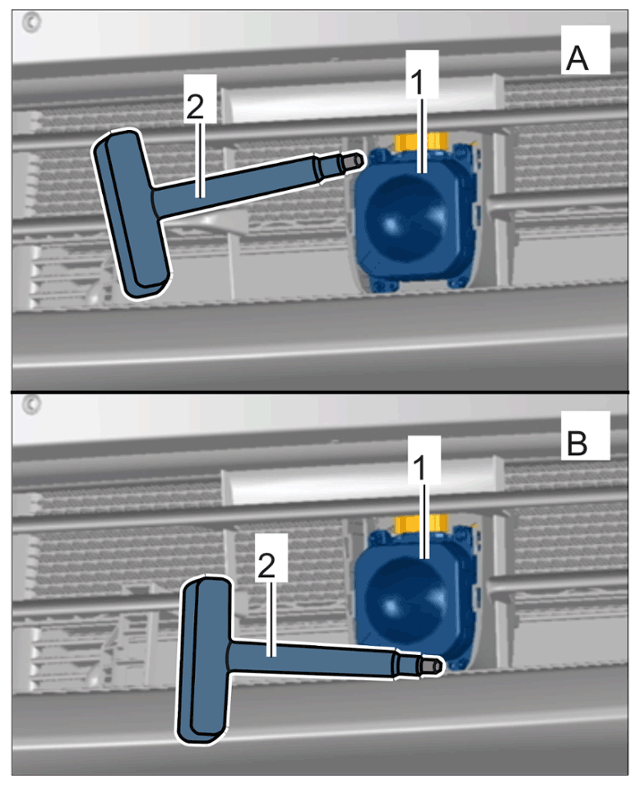

    G15198941Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Adjusting screws for distance measuring sensor

  7. The process must be repeated until the message Adjustment successful  is displayed or the Tester.
