Removing Battery Sensor

WARNING: This page is about a different variant/trim than selected.

Switch off ignition and remove the remote control from the ignition lock.

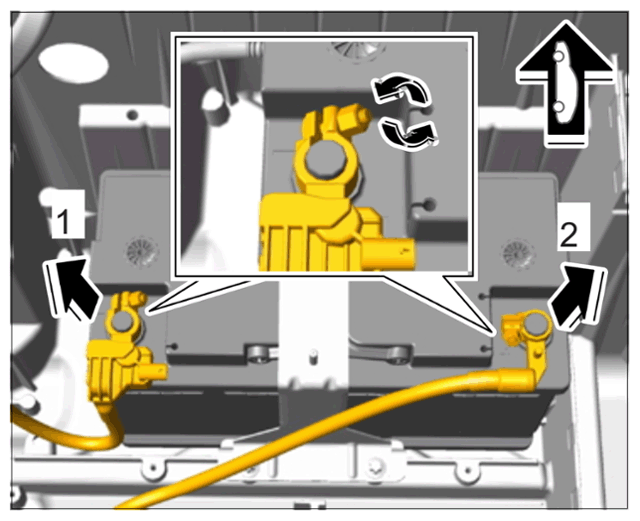

Disconnect the negative cable -1- on the battery.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing terminal clamps

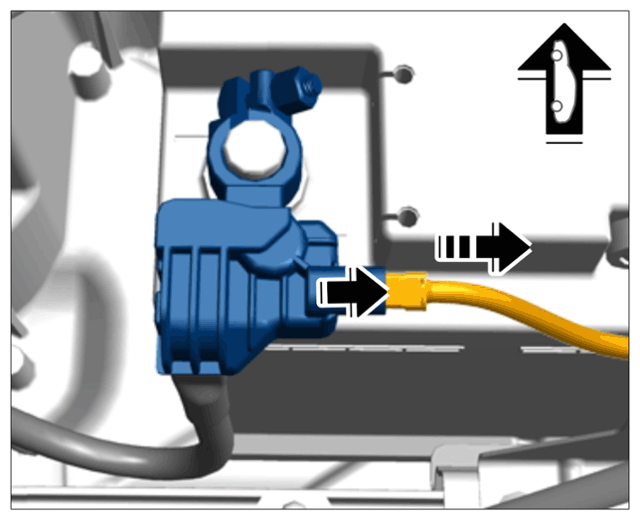

Release and unplug electric connector on the battery sensor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric plug connection

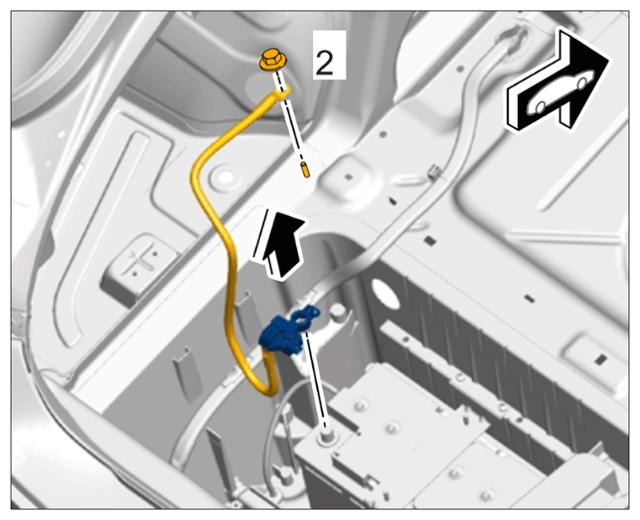

Screw off fastening nut -2- on the body and remove ground strap and battery sensor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing ground strap
