Installing Battery Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Connect ground line to the ground point and secure with the fastening nut -2-  . > Tightening torque 9.7 (7.5 ftlb.)

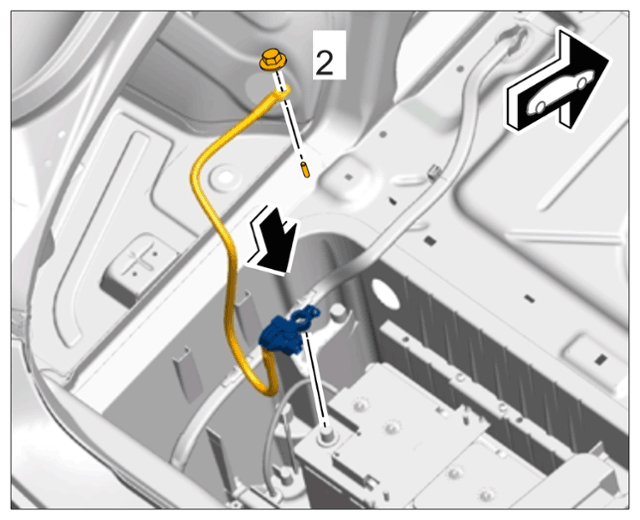

    G15198886Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fitting ground strap

  2. Fit and secure battery sensor -1-  with terminal clamp on the battery. > Tightening torque 6 Nm (4.5 ftlb.)

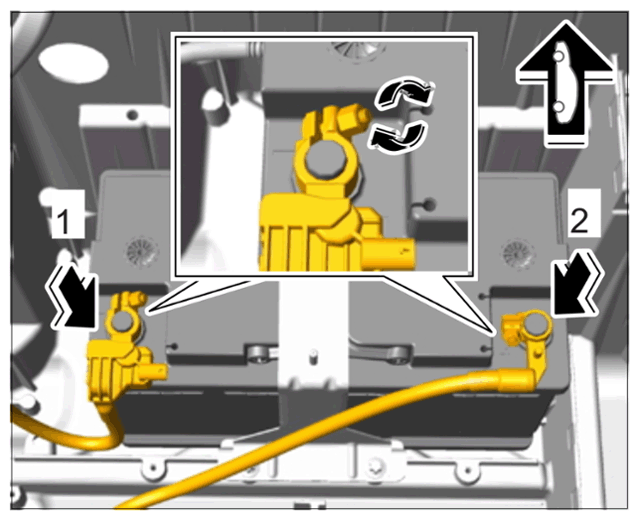

    G15198887Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Attaching terminal clamps

  3. Connect electric plug connection for battery sensor.
