Installing Radiator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

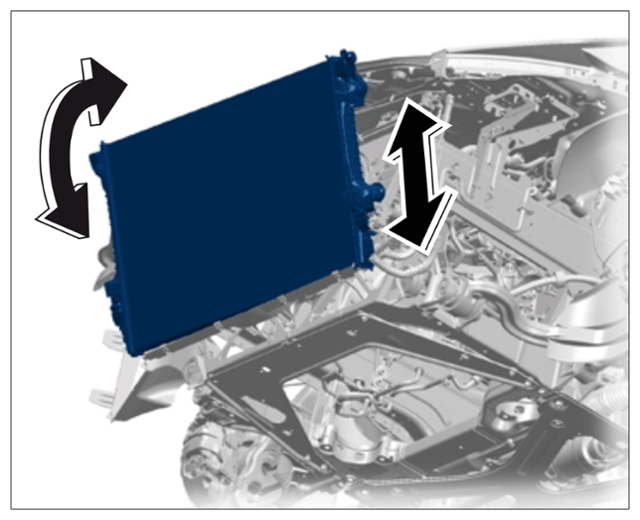

Removing radiator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

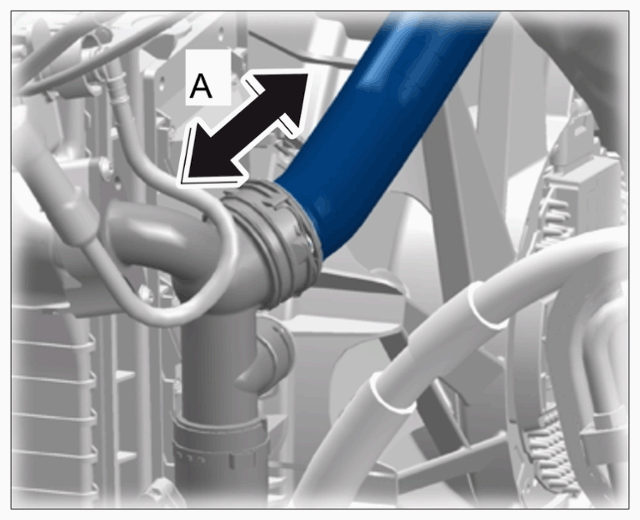

Hose connection

Fit supply hose and return hose -A-  on both sides onto the radiator.

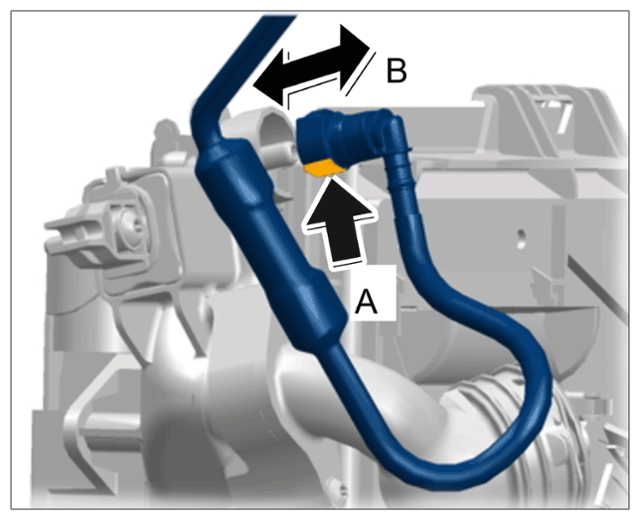

Insert the vent line on the left side on the radiator -B-  and make sure that the locking mechanism -A-  engages.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line connector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Radiator mounting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

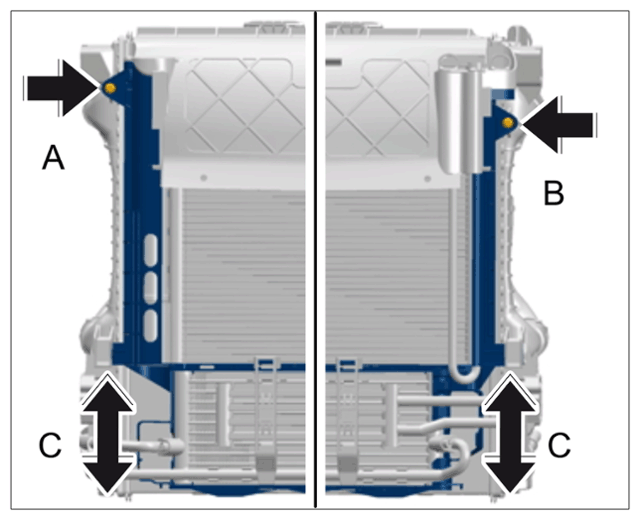

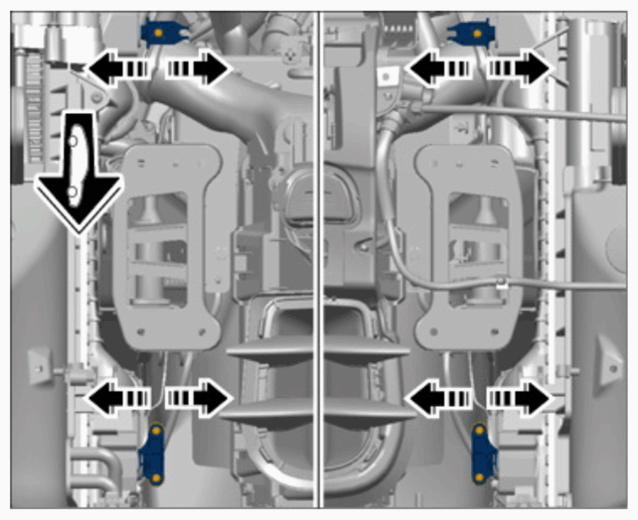

Condenser retaining frame

Push retaining frame up into the guide on both sides

Fit the fastening screws on both sides -A and B-  .

Fit the holder for the servo lines on the left side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

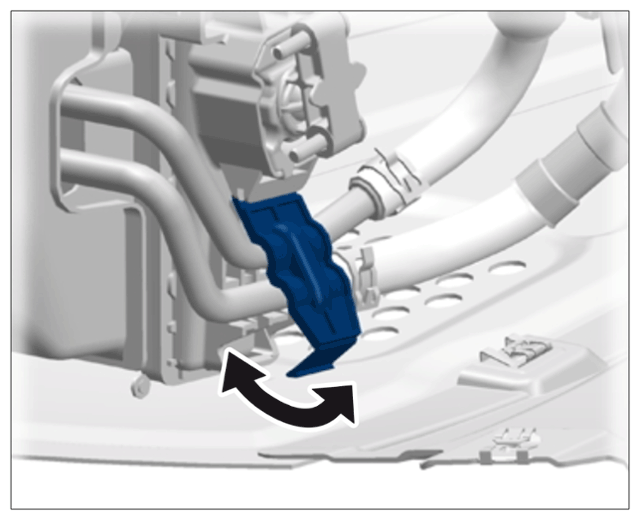

Servo line holder

Fit the fastening screw for the transmission oil line holder on the right side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

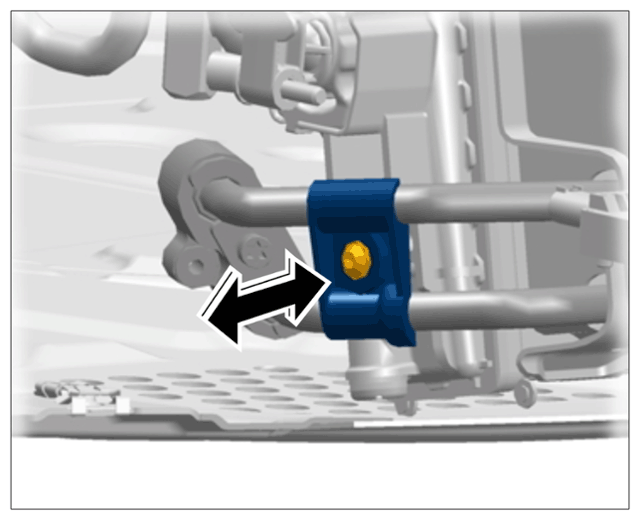

Holder for transmission oil lines

Push the condenser down into the guide.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

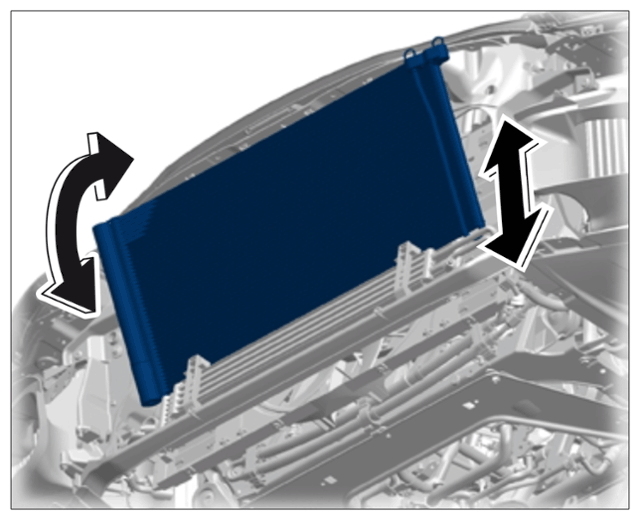

Installing condenser

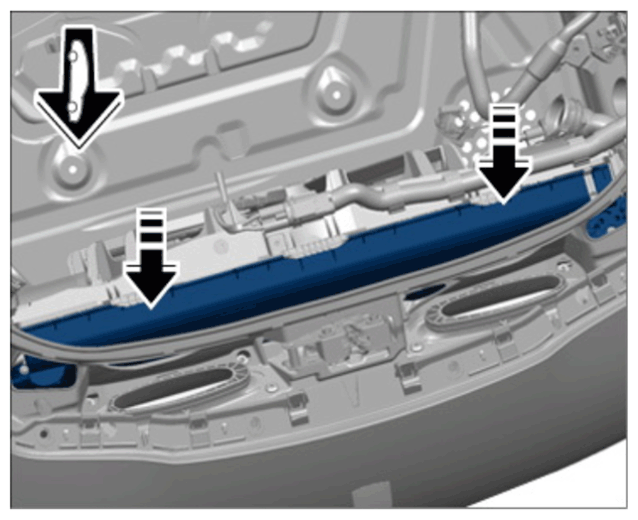

Push the cover down into the guide.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

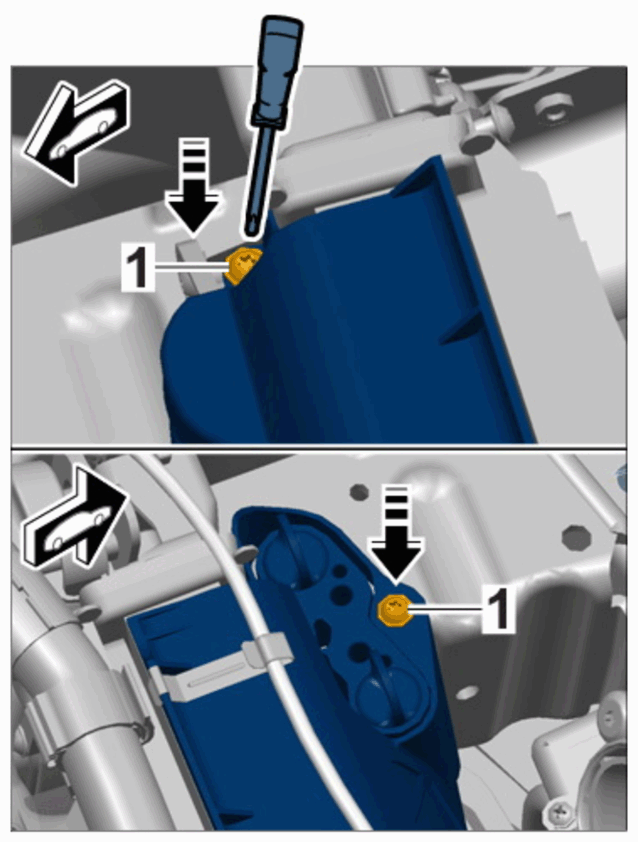

Pushing in upper air guide

Fit the fastening screws on both sides -1-  for the cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening fastening screws on upper air guide

For tightening torques, see:

> WM 875019 REMOVING AND INSTALLING CONDENSER (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

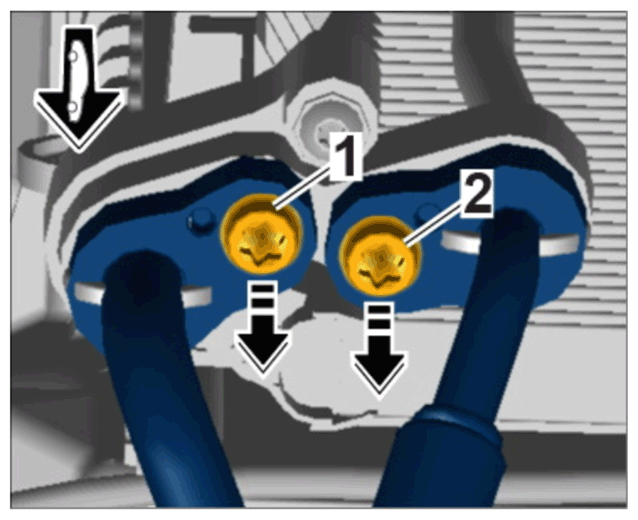

Loosening fastening screws for refrigerant lines
