Component Overview Of Coolant Reservoir

WARNING: This page is about a different variant/trim than selected.

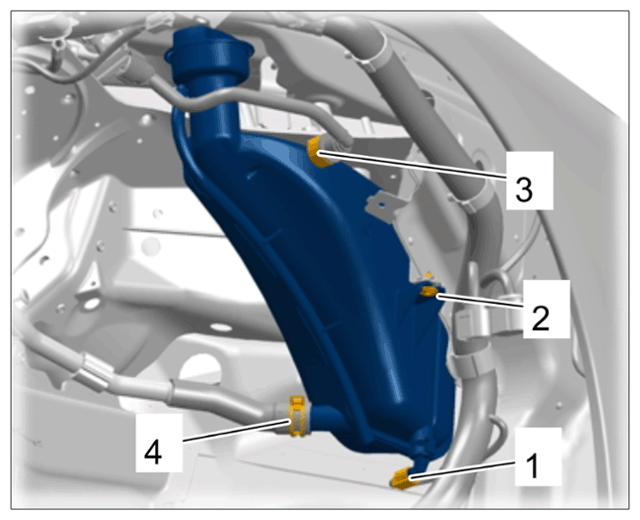

Fig 1: Coolant Reservoir Components Location
G15198471Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of coolant reservoir

1  Connector for water level sensor
2  Fastening screw on coolant reservoir
3  Breather hose
4  Coolant hose
