Removing Coolant Pipes From Compressor

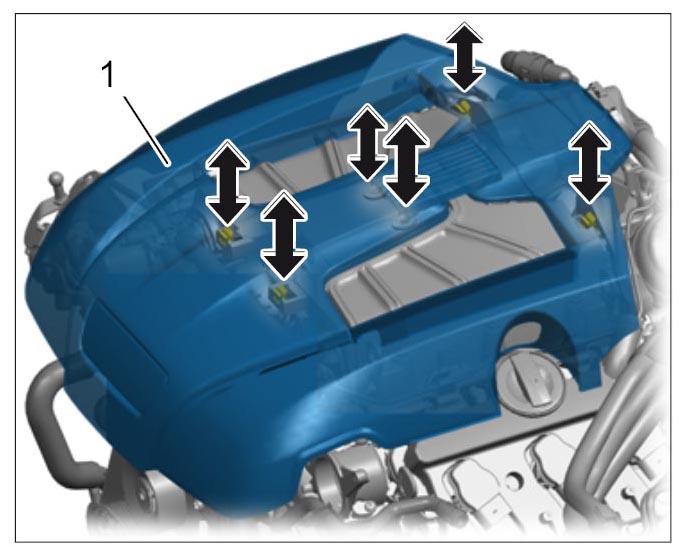

Remove engine cover -1- . → 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)

Fig 1: Removing Engine Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover for front underbody. → 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY
Open the cap on the coolant reservoir.
Place a drip tray under the engine.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

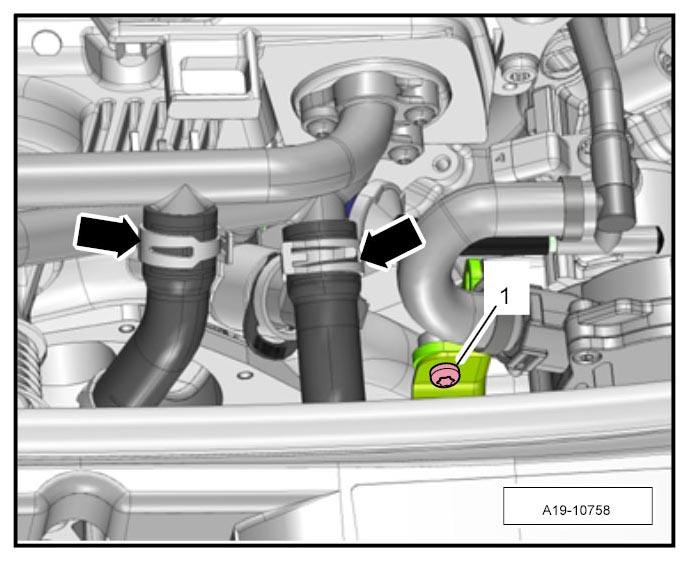

Clamp off coolant hose using hose clamp 3094 and remove it from the coolant pipes on the compressor by releasing the hose clips -arrows- .

Fig 2: Identifying Coolant Hoses On Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

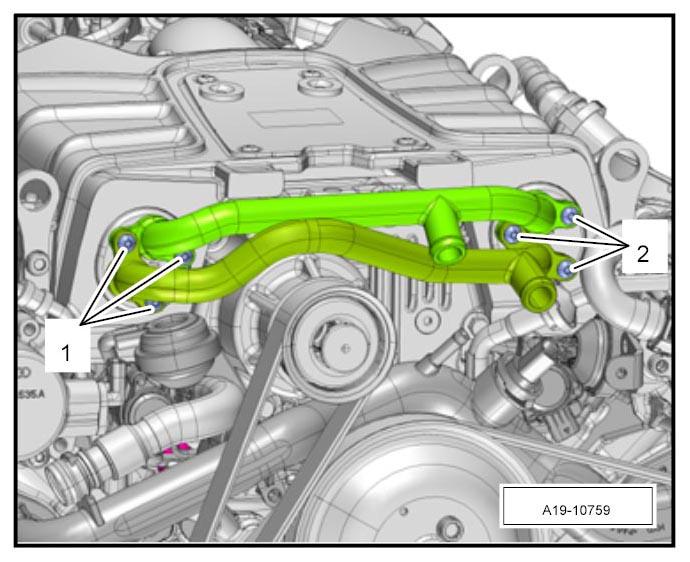

Unscrew screws -1- and -2- and remove coolant pipes.

Fig 3: Identifying Coolant Pipes On Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
