Gap Dimensions Of Rear Window

→

Gap dimension: 3 mm+0.5 mm-0.5 mm (H1)

Gap dimension: 6 mm (H2)

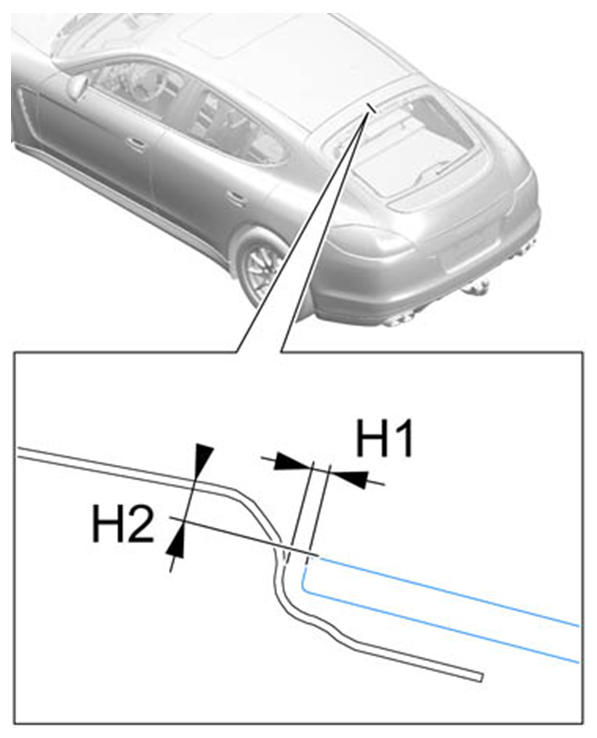

Fig 1: Identifying Gap Dimensions Of Rear Window (H1 & H2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 4 mm+1 mm-0.5 mm (H3)

Gap dimension: 3 mm+1 mm-1 mm (H4)

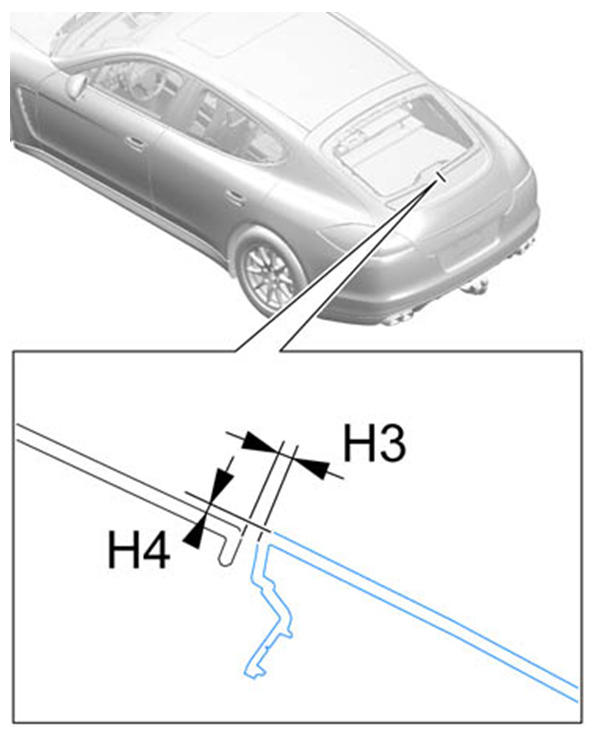

Fig 2: Identifying Gap Dimensions Of Rear Window (H3 & H4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 3 mm+0.5 mm-0.5 mm (H7)

Gap dimension: 9 mm+0.5 mm-1.5 mm (H8)

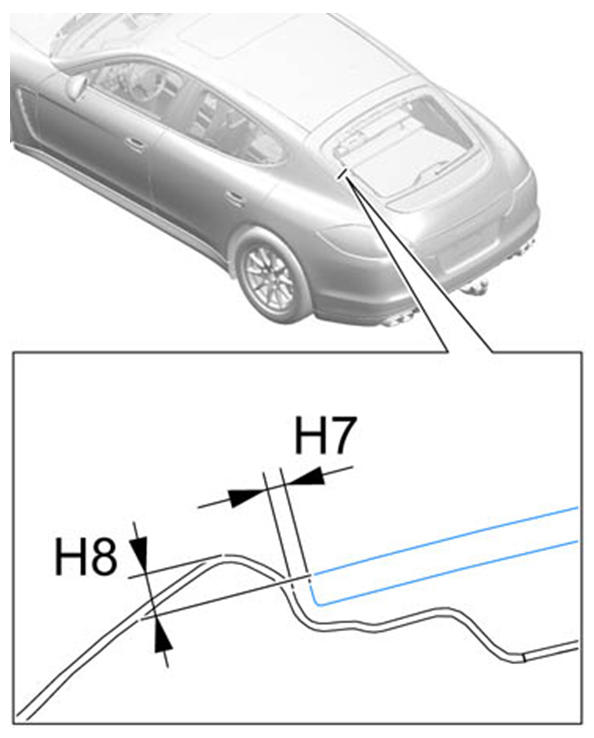

Fig 3: Identifying Gap Dimensions Of Rear Window (H7 & H8)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension
